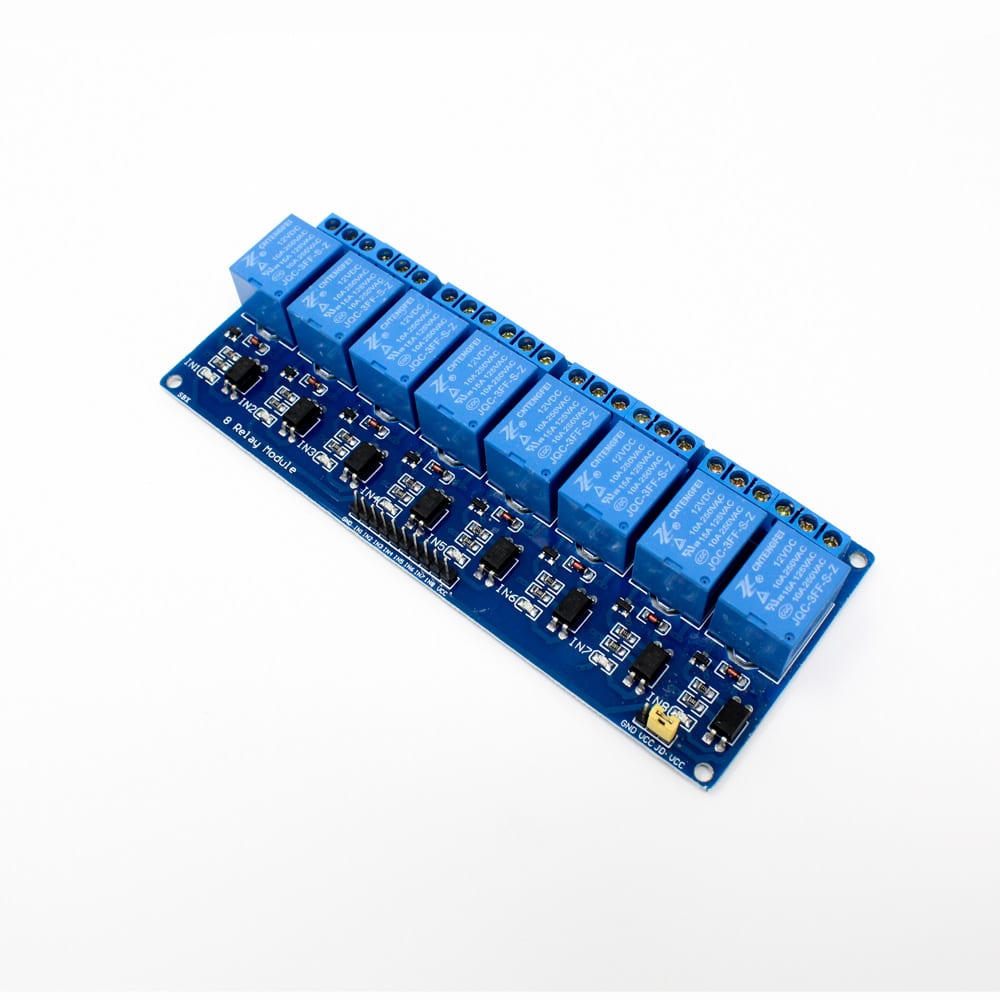

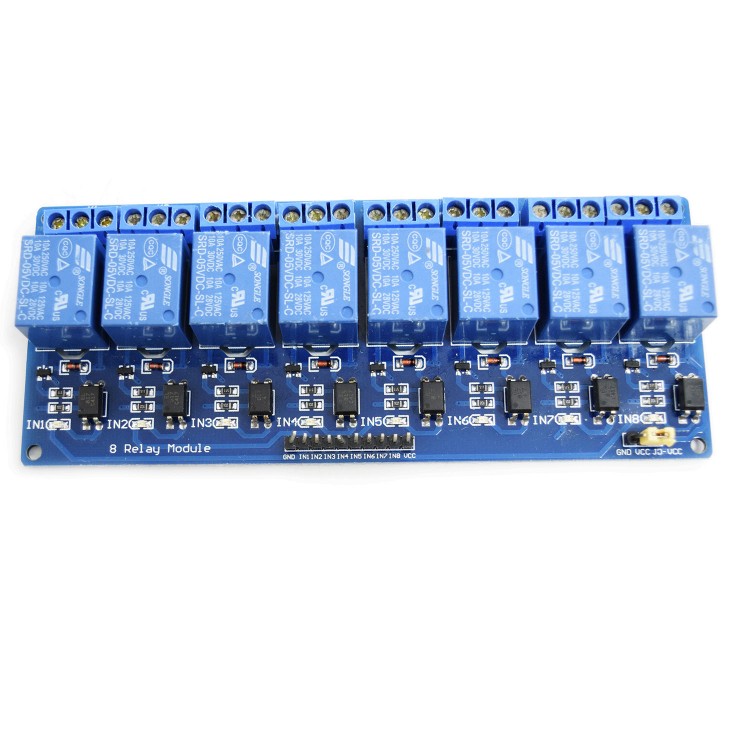

Relay Module 8 Channel 5V – Reliable Switching Solution for Automation Projects

The Relay Module 8 Channel 5V is a powerful and versatile switching board designed for electronics enthusiasts, automation engineers, students, and IoT developers. Built with eight independent relays, this module allows you to control multiple high-voltage devices such as lights, motors, fans, pumps, or home appliances using low-voltage signals from microcontrollers like Arduino, Raspberry Pi, ESP8266, ESP32, STM32, and other development boards.

If you are working on a project that requires controlling several devices at once, this module offers the ideal solution. It provides safe electrical isolation, strong driving capability, and reliable performance, making it suitable for both DIY experiments and professional automation systems.

🔧 Key Features of the 8-Channel Relay Board

• Eight Independent Relays – Each relay supports control of AC or DC loads independently.

• 5V Operating Voltage – Designed to be compatible with popular 5V microcontrollers.

• High Load Capacity – Can handle up to 10A at 250VAC or 10A at 30VDC, ensuring wide applicability.

• Optocoupler Isolation – Provides safe operation by isolating the control signals from the high-voltage side.

• Indicator LEDs – Each channel has an LED indicator that lights up when the relay is active, giving instant feedback.

• Durable PCB Design – Strong board layout with screw terminals for easy wiring.

• Low-Level Trigger or High-Level Trigger Options – Flexible input control depending on your project’s requirements.

⚡ Technical Specifications

• Number of Channels: 8

• Input Voltage: 5V DC

• Trigger Voltage: 3.3V – 5V (compatible with most microcontrollers)

• Relay Type: SPDT (Single Pole Double Throw)

• Load Capacity:

  • AC: 250V @ 10A

  • DC: 30V @ 10A

• Isolation: Optocoupler protection

• Indicators: 8 LEDs for relay status

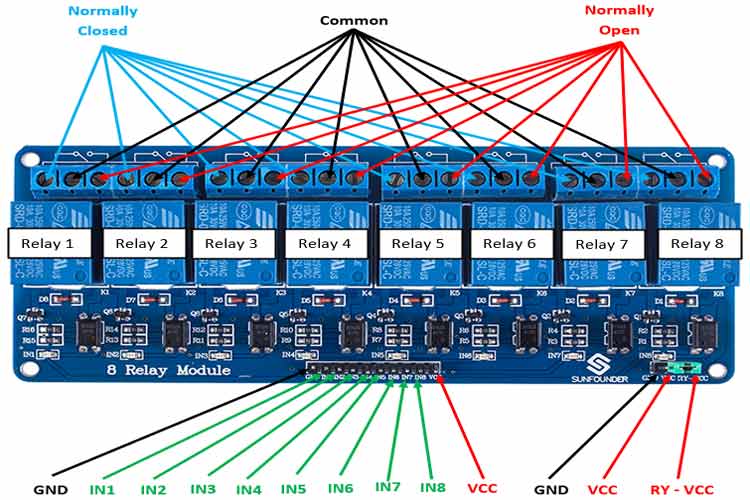

• Connections: Screw terminals for outputs, pin headers for control signals

• Board Size: Compact design for easy integration

🌍 Applications of the 8-Channel Relay Board

The Relay Module 8 Channel 5V is highly versatile and can be applied in a wide range of projects, such as:

1. Home Automation – Automating lights, fans, ACs, and household appliances.

2. IoT Projects – Building smart home systems controlled via Wi-Fi, Bluetooth, or the internet.

3. Robotics – Managing motors, pumps, and actuators.

4. Industrial Control – Automating machinery, conveyors, or safety systems.

5. Smart Agriculture – Controlling irrigation pumps, greenhouse fans, and heaters.

6. Educational Projects – Teaching automation and control systems in engineering labs.

Its ability to switch both AC and DC devices makes it one of the most flexible and popular relay modules for DIYers, students, and professionals alike.

🔒 Safety and Reliability

One of the main advantages of this module is its opto-isolated design, which ensures safe interaction between low-voltage microcontrollers and high-voltage devices. This prevents accidental damage to your microcontroller and provides extra protection against electrical noise or interference.

The screw terminal connections make installation simple and secure, while the onboard power supply components guarantee stable performance even under long operating hours.

✅ Why Choose the 8 Relay Controller Module?

• Supports multiple devices at once, ideal for complex projects.

• Compatible with a wide range of controllers including Arduino, Raspberry Pi, ESP8266, ESP32, STM32, and PIC.

• Reliable switching with long service life.

• Compact design that saves space in control boxes or project setups.

• Affordable solution for home automation and industrial applications.



Conclusion

The Relay Module 8 Channel 5V is an essential tool for anyone interested in electronics, automation, or IoT development. Its combination of high performance, electrical isolation, and wide compatibility makes it one of the best relay boards available. Whether you’re building a smart home project, automating a greenhouse, or developing an industrial control system, this module will deliver the reliability and flexibility you need.

With its eight relays, optocoupler isolation, and strong load capacity, this module is the perfect balance between affordability and professional performance. If you’re looking for a dependable solution to manage multiple devices safely and effectively, the Relay Module 8 Channel 5V is the right choice.
