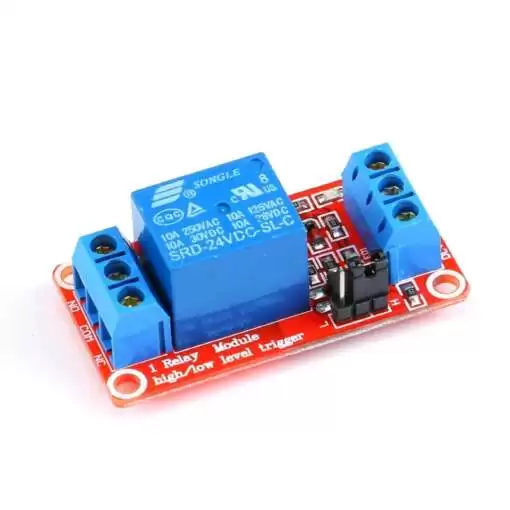

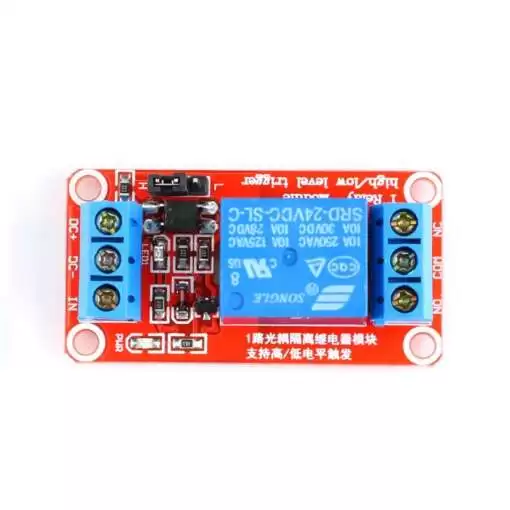

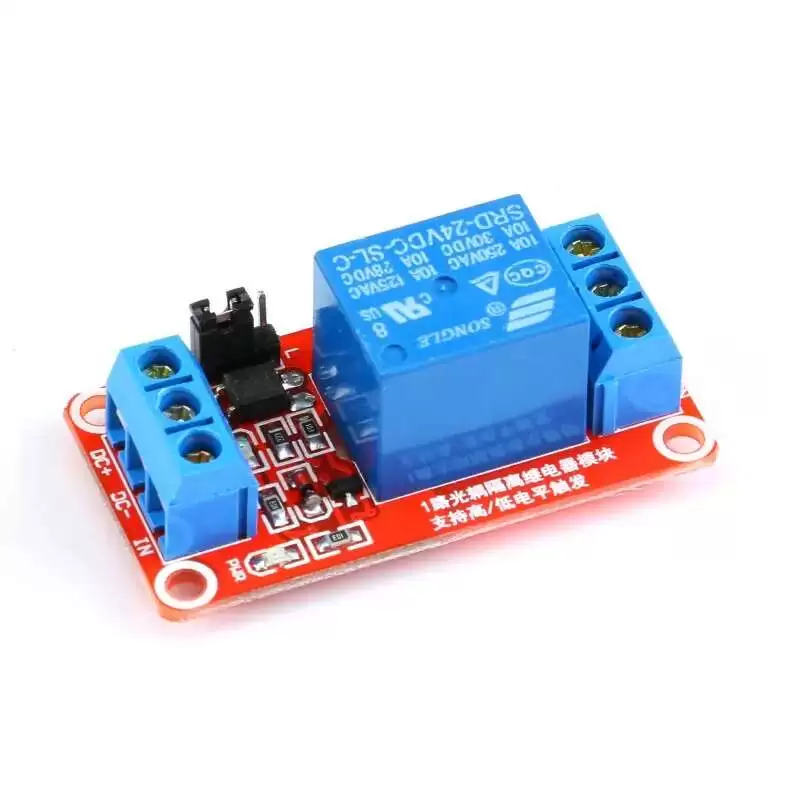

Relay Module (1 Channel) 24V High/Low Level Trigger



Key Features

✅ 24V Relay – Handles high-power loads (up to 10A @ 250V AC / 30V DC).
✅ Optocoupler Isolation – Protects control circuits from voltage spikes and noise.
✅ High & Low Level Trigger Selectable – Jumper setting for flexible control logic.
✅ LED Indicator – Visual relay status (ON/OFF).
✅ Wide Compatibility – Works with 3.3V & 5V microcontrollers (Arduino, ESP32, STM32, etc.).
✅ Compact & Durable – PCB-mounted relay with screw terminals for secure wiring.

Technical Specifications

Applications

• Home Automation – Control lights, fans, and appliances.

• Industrial Control – Motor switching, solenoid control.

• DIY Electronics – Arduino/ESP8266/ESP32 projects.

• Automotive Systems – 24V vehicle applications.

• Safety Cutoff Circuits – Emergency power disconnection.

Wiring & Connections

• VCC (+): Connect to 24V DC (for relay coil power).

• GND (-): Common ground.

• IN (Signal): Control pin (connects to microcontroller).

• NO (Normally Open): Closed when relay is activated.

• COM (Common): Central terminal.

• NC (Normally Closed): Open when relay is activated.

Trigger Modes (Selectable via Jumper)

• High-Level Trigger – Relay activates when control signal is HIGH (5V/3.3V).

• Low-Level Trigger – Relay activates when control signal is LOW (0V/GND).

Package Includes

• 1 × 1-Channel 24V Relay Module

• 1 × Jumper for trigger mode selection

Why Choose This Relay Module?

✔ Dual Trigger Mode – Works with both active-high and active-low signals.
✔ Optocoupler Protection – Prevents damage to microcontrollers.
✔ High Current Handling – Supports heavy loads (motors, heaters, etc.).
✔ Easy Integration – Compatible with most development boards.

Get Started Now!

Ideal for automation, robotics, and industrial control projects. Order today and add reliable switching to your electronics setup!
