Description

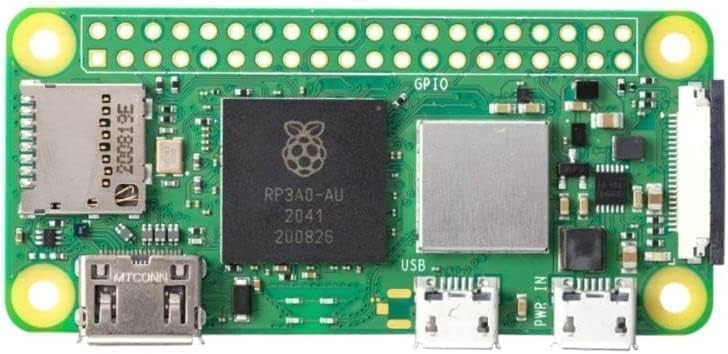

Raspberry Pi Zero 2 W – Compact Power for Smart Projects

The Raspberry Pi Zero 2 W is a powerful, ultra-compact development board that brings the performance of the Raspberry Pi family into an incredibly small and energy-efficient form factor. Designed for makers, students, and engineers, it offers a perfect balance between processing capability, size, and cost—making it ideal for embedded systems, IoT devices, and portable electronics projects.

Built around the Raspberry Pi RP3A0 system-in-package (SiP), which integrates a quad-core 64-bit ARM Cortex-A53 CPU clocked at 1 GHz, the Zero 2 W delivers nearly five times the performance of the original Pi Zero W. This boost in power allows it to handle multitasking, wireless communication, and even lightweight AI or vision applications—all within a board small enough to fit in the palm of your hand.

Compact Yet Powerful Design

At only 65 mm × 30 mm, the Raspberry Pi Zero 2 W maintains the iconic footprint of the Pi Zero series while packing a serious performance upgrade. The quad-core Broadcom BCM2710A1 CPU, paired with 512 MB LPDDR2 SDRAM, gives you the computational muscle to run Linux-based operating systems such as Raspberry Pi OS, and to execute real-time tasks or multiple background processes with ease.

This makes the Zero 2 W an excellent choice for applications such as home automation, robotics control, sensor data logging, media streaming, or as a lightweight edge-computing node..

Built-In Wireless Connectivity

The Raspberry Pi Zero 2 W includes integrated 2.4 GHz Wi-Fi and Bluetooth 4.2 Low Energy (BLE), powered by the Infineon CYW43438 wireless chip. This allows easy connection to the internet, mobile devices, or other microcontrollers—without the need for additional USB dongles. The onboard antenna ensures stable communication and consistent range, ideal for IoT and remote monitoring projects.

With built-in wireless support, you can easily deploy your Raspberry Pi Zero 2 W in applications such as smart home sensors, remote cameras, or Bluetooth-enabled devices without adding bulk or external modules.

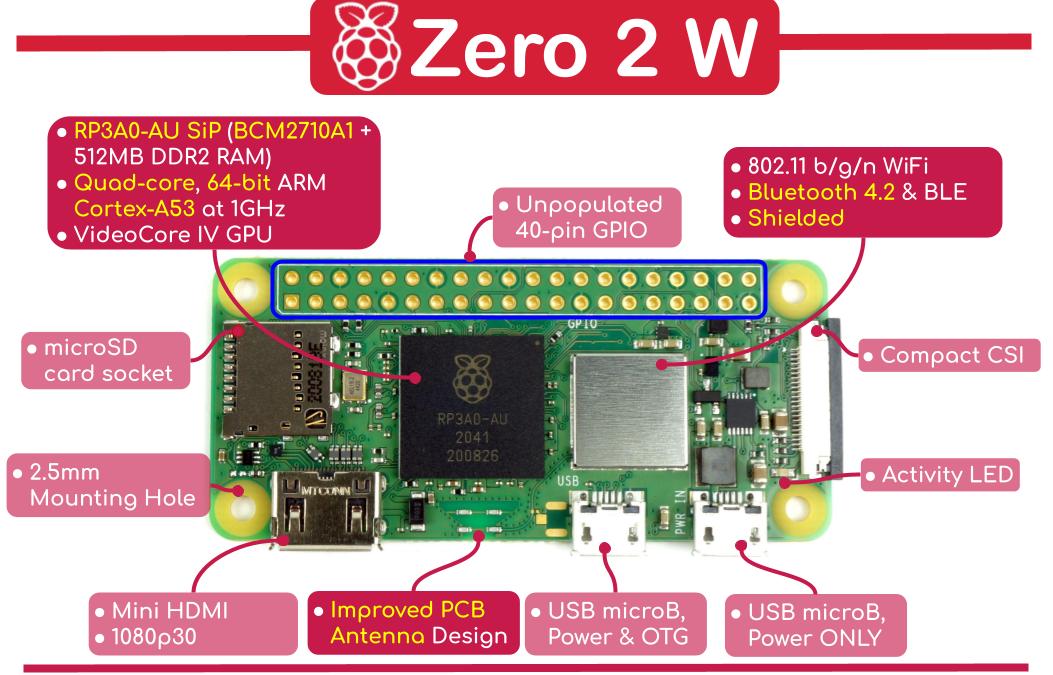

Flexible I/O and Expansion

Despite its size, the Raspberry Pi Zero 2 W features a 40-pin GPIO header (unpopulated), offering full compatibility with HATs and accessories designed for other Raspberry Pi boards. It supports standard interfaces such as I²C, SPI, UART, and PWM, enabling direct connection to sensors, actuators, and displays.

Other hardware interfaces include:

• Mini HDMI port for video output up to 1080p

• Micro-USB OTG port for connecting peripherals (keyboards, mice, etc.)

• Micro-USB power port

• CSI camera connector for attaching Raspberry Pi camera modules

This combination of compact design and versatile connectivity makes the Zero 2 W suitable for projects ranging from camera-based surveillance to portable gaming consoles and environmental monitoring systems.

Power Efficiency and Thermal Performance

Operating at 5 V DC via micro-USB and consuming minimal power, the Raspberry Pi Zero 2 W is perfect for battery-powered or portable devices. Despite its quad-core performance, it remains energy-efficient thanks to the advanced design of the RP3A0 chip and optimized power management.

Its low heat generation ensures stable performance even under continuous operation, making it reliable for 24/7 embedded applications.

Software Compatibility and Developer Support

Like all Raspberry Pi products, the Zero 2 W supports a vast ecosystem of open-source software, libraries, and community resources. It runs Raspberry Pi OS and other compatible Linux distributions, allowing developers to program in Python, C/C++, Java, or Node.js.

The device is fully compatible with tools such as Thonny, VS Code, and Arduino IDE, enabling smooth integration with existing workflows. Whether you are developing automation scripts, controlling GPIO pins, or building IoT dashboards, the Raspberry Pi Zero 2 W gives you a powerful and accessible development platform.

Perfect for Makers and Professionals Alike

The Raspberry Pi Zero 2 W is ideal for:

• 🔧 IoT devices and smart home projects

• 🤖 Robotics and automation systems

• 🎥 Compact camera and video streaming units

• 📡 Wireless sensor nodes and data loggers

• 🎮 DIY handheld gaming consoles

• 🧠 Edge computing and AI experiments

Its low cost, high performance, and wide compatibility make it one of the most versatile development boards on the market—equally suited for hobbyists, educators, and industry professionals.

Key Specifications

• Processor: Broadcom BCM2710A1 (Quad-core ARM Cortex-A53 @ 1 GHz)

• Memory: 512 MB LPDDR2 SDRAM

• Wireless: 2.4 GHz Wi-Fi 802.11 b/g/n, Bluetooth 4.2 BLE

• Video & Audio: Mini HDMI output (up to 1080p60)

• Camera Interface: CSI connector for Raspberry Pi Camera Module

• USB: 1× Micro-USB OTG port + 1× Micro-USB for power

• GPIO: 40-pin header (unpopulated) – compatible with standard Pi HATs

• Power Input: 5 V DC via Micro-USB (typical consumption 0.7 W–2 W)

• Dimensions: 65 mm × 30 mm × 5 mm

Package Includes

• 1 × Raspberry Pi Zero 2 W Board

• (Optional) 1 × 40-pin GPIO header

• 1 × Quick start guide/documentation



Data Sheet
