Description

Features and Specs:

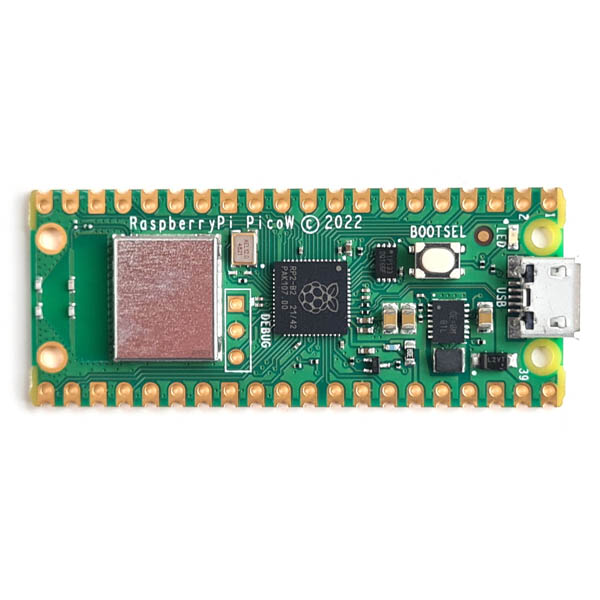

• Wireless version of Raspberry Pi Pico
• Straight from Raspberry Pi factory
• 1st Microcontroller Development Board from Raspberry Pi Foundation
• 1st Silicon (IC), RP2040 MCU designed from the ground up by engineers of Raspberry Pi Foundation
• Built-in CYW43439, offers Wireless LAN (WiFi) IEEE 802.11 b/g/n (2.4GHz), and Bluetooth 5.2 (not supported during launch)
• Onboard PCB Antenna
• Dual-Core, 32-bit ARM Cortex M0  Processor
• Flexible clock, configurable max to 133MHz
• Ready with USB Micro B receptor for Power and Data
• Support USB 1.1 Host and Device
• Connected to the USB port and it will appear as USB Mass Storage by default, no driver is needed
• Supports CircuitPython, MicroPython, C, and C  Programming Language
• Drag and Drop Program loading method, just like moving file in Windows Explorer
• Comes in 40-pin 21×51 ‘DIP’ style 1mm thick PCB with 0.1″ through-hole pins, breadboard-friendly
• With the edge castellations PCB, it is ready to be mounted on another PCB without an additional header pin, SMD friendly
• Without a pre-soldered header pin
• Peripheral rich:
  • Extended out 26 multifunction 3.3V General Purpose I/O (GPIO)
  • 23 GPIO are digital-only
  • 3 x 12-bit ADC capable of 500Ksps, Analog to Digital Converter
  • 2 x UART (Universal Asynchronous Receiver/Transmitter)
  • 2 x SPI (Serial Peripheral Interface)
  • 2 x I2C (Inter IC)
  • 16 x PWM (Pulse Width Modulation)
  • 1 x Timer with 4 alarms
  • 1 x Real Time Counter
  • 2 x Programmable IO (PIO) that can emulate high-speed interfaces such as SD card or VGA
  • Built-in 12-bit ADC temperature sensor
• 3-pin ARM Serial Wire Debug (SWD) port
• Onboard Programmable LED
• Simple yet highly flexible power supply architecture
  • Support USB power, external supply, or even battery power.
• Comprehensive SDK, software examples, and documentation
• Officially from Raspberry Pi Foundation
• Compatible with any computer with USB port, Windows, macOS, Linux
• Work seamlessly with Raspberry Pi 4 Model B, or Raspberry Pi 400 and Raspberry Pi OS
• Dimensions: 51mm x 21mm x 1mm
