Description



🔧 Key Features:

• High-performance 8-bit PIC® Microcontroller

• Full-Speed USB 2.0 compliant interface (12 Mbps)

• 28-Pin DIP for easy prototyping and development

• 32 KB Flash Program Memory

• 2 KB SRAM

• 256 Bytes EEPROM

• 48 MHz max system clock (using internal PLL)

• Up to 24 I/O pins with multiple pin functions

• 10-bit ADC (Analog-to-Digital Converter) with up to 13 channels

• 1 x SPI, 1 x I²C, 1 x UART

• Timers, CCP (Capture/Compare/PWM) modules, and Watchdog Timer

• USB Transceiver and SIE (Serial Interface Engine) built-in

• Low-power operation and multiple sleep modes

---

📦 Typical Applications:

• USB HID (Human Interface Device) development

• USB to serial converters

• Embedded USB peripherals

• Custom PC interface devices

• Robotics and automation projects

• Educational platforms for embedded systems

---

⚙️ Technical Specifications:

• Flash Memory: 32KB

• RAM: 2KB

• EEPROM: 256B

• Operating Voltage: 2.0V to 5.5V

• Operating Frequency: Up to 48 MHz (with internal PLL)

• Temperature Range: -40°C to +85°C (industrial grade)

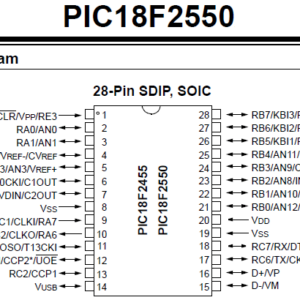

• Package Type: 28-Pin DIP





Datasheet: https://datasheet.octopart.com/PIC18F2550-I/SO-Microchip-datasheet-8852375.pdf
