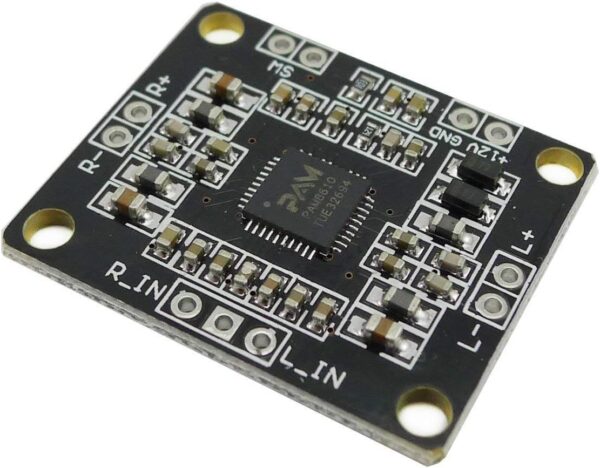

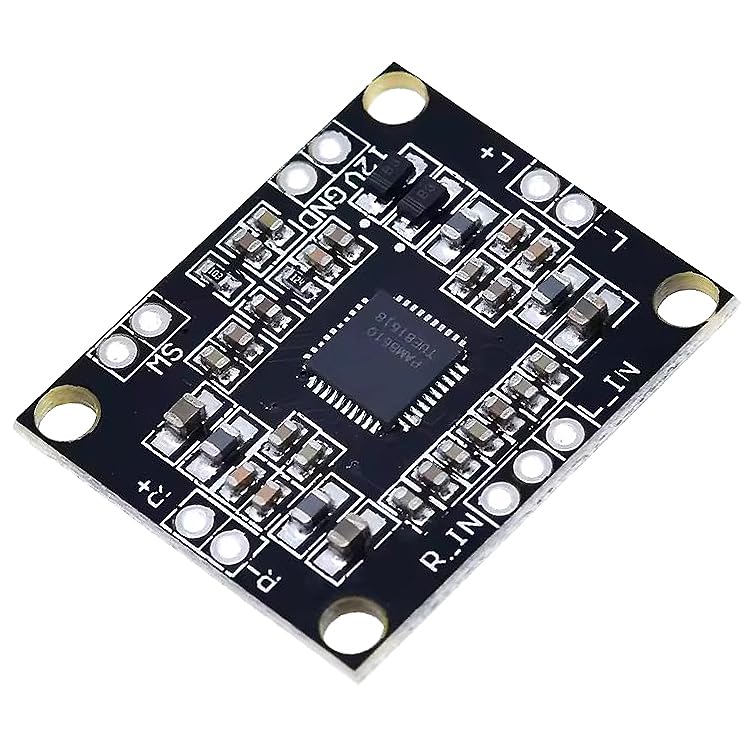

PAM8610 Digital Audio Amplifier Board 2x15W Dual Channel Stereo 7-15 V

Dual-Channel Stereo Output, Run-on 7V to 15V power Supply, 32 Steps DC volume control has a +32dB to -75dB range, 40 pin QFN 6 x 6 mm package, Much higher efficiency in terms of cost and performance than competitors’ ICs.

EGP 95.00

Product Description

  • The PAM8610 is a 15W (per channel) stereo Class-D audio amplifier with DC Volume Control which offers low THD+N (0.1%), low EMI, and good PSRR thus high-quality sound reproduction.
  • The 32 steps DC volume control has a +32dB to -75dB range. The PAM 8610 runs on a 7V to 15V supply at a much higher efficiency than competitors’ ICs.
  • The PAM8610 amplifier only requires very few external components, significantly saving cost and board space.
  • This 2x15W Two-Channel Stereo Class-D Amplifier is available in a 40 pin.

Package included:

  • 1 x PAM8610 Digital Audio Amplifier Board 2x15W Dual Channel Stereo 7-15 V
Model PAM 8610
Input Voltage 7 ~ 15V
Working Mode

Class D (PWM modulation type)

Power

15W
