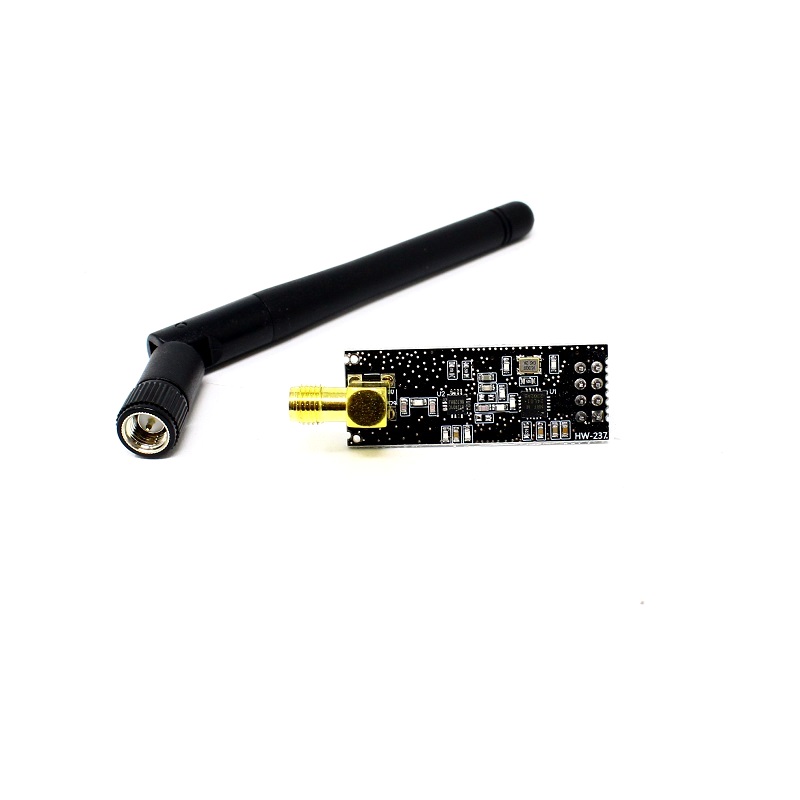

Nrf24L01+Pa+Lna 1KM Distance Wireless Transceiver (2DB Antenna)

193.00 EGP

This 2.4GHZ NRF24L01 Module with PA LNA SMA Antenna use 2.4 GHz transceiver from Nordic Semiconductor, the nRF24L01 PA LNA. This transceiver IC operates in the 2.4 GHz band and has many new features. Take all the coolness of the nRF2401A and add some extra pipelines, buffers, and an auto-re-transmit feature.

Out of stock

SKU: WL-22597 Category: Wireless Tags: Modules, wireless

Description
Reviews (0)

Description

Distance Wireless Transceiver

Specifications:

Voltage: 3-3.6V
Max output power: 20 dBm
Working current in transmit mode (peak): 115 mA
Working current in receiver mode (peak): 45 mA
Current in-mode: 4.2uA
Operating temperature: -20-70 degree
Receiver sensitivity: -92 dBm in 2 Mbps mode, -95 dBm in 1 Mbps mode, -104 dBm in 250 kbps mode
PA gain: 20 dB
LAN gain: 10dB
LAN noise figure: 2.6dB
Antenna gain (peak): 2 dBI
2M rate: 520m
Dimension of NRF24L01 Module: 31 x 20 mm
Antenna Length: 88 mm
