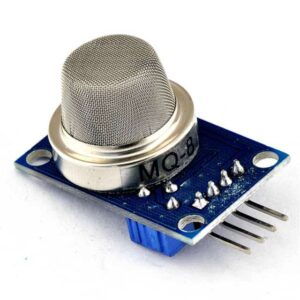

MQ-8 Hydrogen Gas Sensor Module (H₂)

The MQ-8 Hydrogen Gas Sensor Module is a highly sensitive and reliable sensor designed to detect the presence of hydrogen gas (H₂) in the environment. It is widely used in industrial, laboratory, and DIY electronics applications for gas leak detection, safety monitoring, and environmental sensing. Featuring a fast response time and stable output, the MQ-8 module provides accurate detection, making it an essential tool for engineers, hobbyists, and researchers working with hydrogen or combustible gases.

The module outputs both analog and digital signals, allowing for flexible integration with Arduino, Raspberry Pi, ESP8266, ESP32, and other microcontroller platforms. With simple wiring and calibration, the MQ-8 module is ideal for gas detection systems, safety alarms, and smart home projects.

Key Features of MQ-8 Hydrogen Gas Sensor Module

• High Sensitivity: Capable of detecting hydrogen gas at low concentrations.

• Fast Response and Recovery Time: Quickly reacts to changes in hydrogen levels for real-time monitoring.

• Analog and Digital Output: Provides an analog voltage proportional to gas concentration and a digital output for threshold detection.

• Stable Performance: Reliable sensor readings over extended periods.

• Wide Operating Voltage: Works with 5V DC power supply, suitable for most microcontrollers.

• Easy Interface: Simple 4-pin connection (VCC, GND, DO, AO) for quick integration.

• Compact Design: Lightweight and small form factor suitable for embedded projects.

• Adjustable Sensitivity: Built-in potentiometer allows threshold adjustment for digital output.

Technical Specifications

• Sensor Type: MQ-8 Hydrogen Gas Sensor

• Detection Gas: Hydrogen (H₂)

• Detection Range: 100–10000 ppm (parts per million)

• Power Supply: 5V DC

• Output: Analog (AO), Digital (DO)

• Heater Resistance: 33 Ω

• Load Resistance: 10 KΩ (recommended)

• Response Time: < 30 seconds

• Recovery Time: < 60 seconds

• Operating Temperature: -10°C to 50°C

• Dimensions: Compact module, easy for integration into projects



Why Choose the MQ-8 Hydrogen Gas Sensor Module?

1. Reliable Detection – Detects hydrogen leaks quickly, helping to prevent hazardous situations.

2. Flexible Integration – Compatible with most microcontrollers, including Arduino, Raspberry Pi, ESP8266, and ESP32.

3. Easy to Use – Simple 4-pin connection and adjustable threshold make it ideal for beginners and professionals alike.

4. Wide Applications – Can be used in laboratories, factories, gas leak detection systems, and DIY electronics projects.

5. Compact and Lightweight – Easy to mount in embedded devices or small enclosures.

Applications of MQ-8 Hydrogen Gas Sensor

• Industrial Safety: Detect hydrogen leaks in chemical plants, fuel cells, and laboratories.

• Gas Leak Alarms: Integrated into home or industrial gas detection systems for safety monitoring.

• Environmental Monitoring: Measure hydrogen gas levels in various settings for research or control systems.

• DIY Electronics Projects: Ideal for Arduino or Raspberry Pi projects requiring gas detection.

• Smart Home Devices: Can be part of safety and automation systems in smart homes.

How to Use the MQ-8 Hydrogen Gas Sensor Module

1. Connect the Module – Use the 4-pin header: VCC to 5V, GND to ground, DO to digital input, AO to analog input on your microcontroller.

2. Adjust Sensitivity – Use the onboard potentiometer to set the digital output threshold.

3. Calibrate the Sensor – Allow the sensor to preheat for a few minutes for accurate readings.

4. Read Gas Levels – Use the analog output for exact concentration or the digital output for threshold-based detection.

5. Integrate with Project – Combine the sensor with alarms, LEDs, or IoT devices for hydrogen monitoring applications.

Package Includes

• 1 × MQ-8 Hydrogen Gas Sensor Module (H₂)

Conclusion

The MQ-8 Hydrogen Gas Sensor Module (H₂) is an indispensable component for anyone needing accurate and reliable hydrogen detection. Its fast response, analog and digital outputs, and compatibility with popular microcontrollers make it suitable for industrial, educational, and DIY projects.

Whether you are building a gas leak alarm, environmental monitoring system, or an IoT project, the MQ-8 module provides precise, stable, and efficient hydrogen detection. Its compact design, easy interface, and adjustable sensitivity make it a must-have for safe and innovative electronics projects.
