Description

MG995 Servo Motor Tower Pro 360 Degree (Full Metal Gear) – Continuous Rotation & High Torque

The MG995 Servo Motor Tower Pro 360 Degree (Full Metal Gear) is a high-performance continuous rotation servo designed for robotics, RC vehicles, automation, and DIY electronics projects. Unlike standard 180-degree servos, the MG995 360° offers full rotation capability, making it ideal for applications that require continuous motion, such as wheeled robots, conveyor systems, and rotating mechanisms.

Built with full metal gears, this servo provides maximum durability, high torque, and reliable operation, making it suitable for heavy-duty tasks and repeated use in demanding environments. Its combination of strength, precision, and continuous rotation makes it a favorite among hobbyists, educators, and professionals alike.

Key Features

• Full Metal Gears: Strong, durable gears for long-lasting performance under load.

• Continuous Rotation: 360-degree movement for robotics and automation applications.

• High Torque: Up to 12 kg.cm at 6V, capable of moving heavy loads.

• Speed: 0.20 seconds per 60 degrees at 6V (for standard movement mode).

• Wide Voltage Range: Operates between 4.8V–7.2V for flexible integration.

• PWM Control: Standard 3-pin interface compatible with Arduino, Raspberry Pi, and other microcontrollers.

• Compact Design: Easy to mount in robotic and mechanical systems.

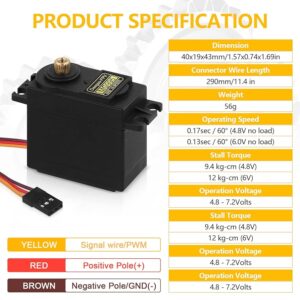

Technical Specifications

• Model: MG995 Tower Pro Servo Motor

• Torque: 12 kg.cm at 6V (approx. 10 kg.cm at 4.8V)

• Speed: 0.20 sec / 60° at 6V

• Operating Voltage: 4.8V – 7.2V

• Rotation: Continuous 360° rotation

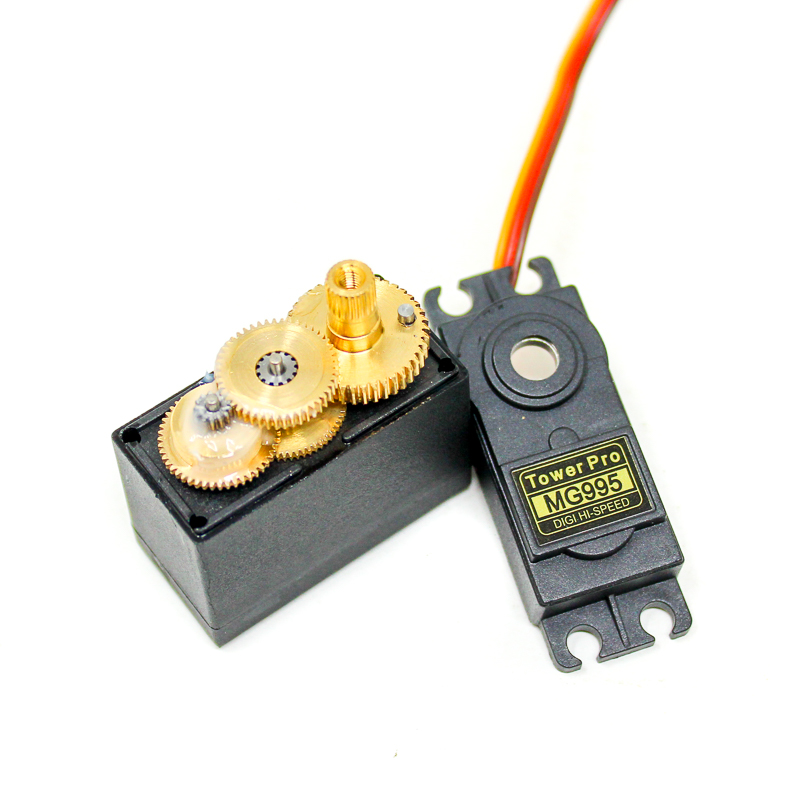

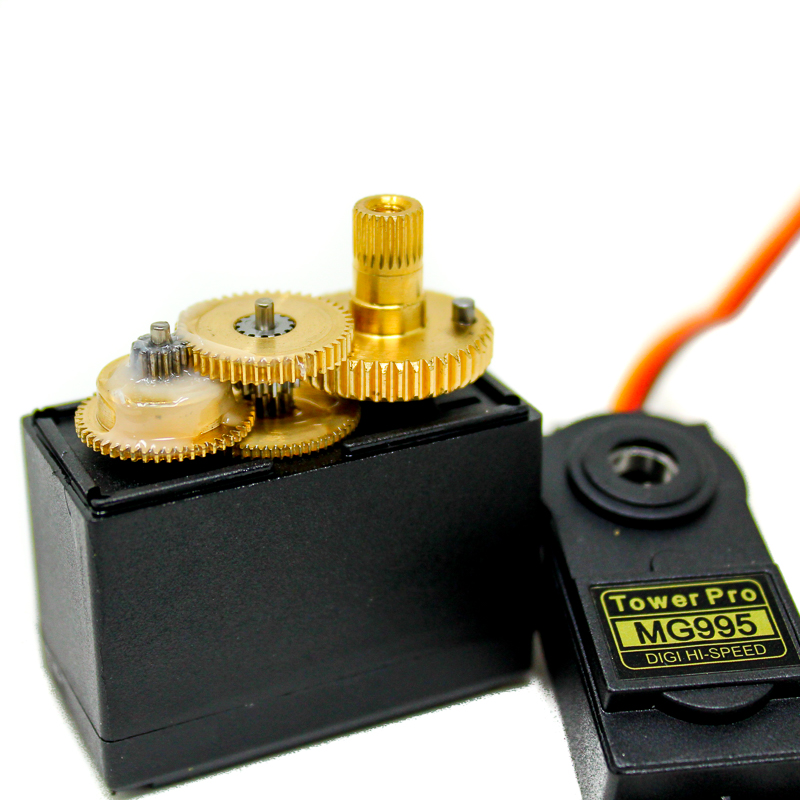

• Gear Type: Full metal gears for durability and strength

• Motor Type: DC motor with potentiometer feedback

• Connector Type: Standard 3-pin PWM

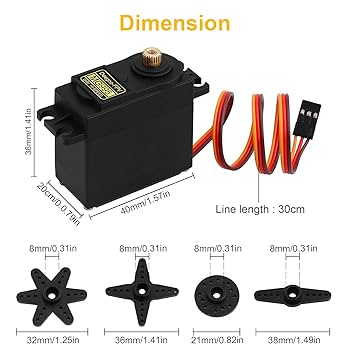

• Dimensions: Approx. 40.7 x 19.7 x 42.9 mm

• Weight: 60g

Advantages of the MG995 360° Servo

1. Continuous Motion: Full 360-degree rotation allows continuous movement in wheeled robots, turntables, and rotating mechanisms.

2. High Torque: Moves heavier loads efficiently, ideal for robotic arms, conveyor belts, or RC vehicles.

3. Durable Gears: Full metal gear construction ensures long life and minimal maintenance.

4. Precise Control: Can switch between position control and continuous rotation for versatile applications.

5. Easy Integration: Compatible with Arduino, Raspberry Pi, and other microcontrollers for easy programming.

Applications

The MG995 Servo Motor Tower Pro 360 Degree (Full Metal Gear) is suitable for numerous applications:

• Robotic Wheels & Drive Systems: Provides continuous motion for wheeled robots and mobile platforms.

• Conveyor Belts: Can drive small conveyors in automation projects.

• Pan-and-Tilt Mechanisms: Enables continuous camera rotation or robotic turret movement.

• DIY Robotics: Perfect for project arms, grippers, or rotating platforms.

• RC Vehicles: Continuous steering or rotating mechanisms for cars, boats, and tanks.

• Educational Kits: Helps students learn about continuous rotation, PWM control, and torque applications.

How the MG995 360° Servo Works

The MG995 continuous rotation servo operates using a DC motor and potentiometer feedback system. Unlike standard 180-degree servos, its potentiometer is modified for continuous rotation, allowing it to rotate endlessly in either direction.

A PWM (Pulse Width Modulation) signal from a microcontroller controls rotation speed and direction. A 1.5 ms pulse typically stops the servo, while pulses above or below 1.5 ms control rotation in opposite directions. The full metal gears transmit torque efficiently, allowing continuous motion even under heavier loads.

Example Project

A popular application is a wheeled robot. Two MG995 360° servos can act as the left and right drive wheels, allowing precise control over speed and direction.

Another example is a rotating surveillance camera. The servo provides smooth, continuous rotation for monitoring a wide area without needing multiple servos for full coverage.

Additionally, the MG995 is ideal for conveyor belt mechanisms in DIY automation, moving small items or components with precise speed control.

Why Choose the MG995 Tower Pro 360°

The MG995 Servo Motor Tower Pro 360 Degree (Full Metal Gear) stands out for its durability, high torque, and continuous rotation capability. Its full metal gears ensure long-lasting performance, while its 360-degree rotation expands its applications beyond standard servos. Whether for robotics, RC vehicles, automation, or educational projects, the MG995 360° servo delivers reliable, smooth, and powerful motion.

Conclusion

The MG995 Tower Pro Full Metal Gear 360° Servo Motor is a robust, versatile, and high-torque actuator ideal for projects requiring continuous rotation and precise control. With its durable metal gears, strong torque, and PWM control compatibility, it is perfect for robotics, automation, RC vehicles, and DIY electronics.
