Robot Arm Maker Kit ( Acrylic and Wood )

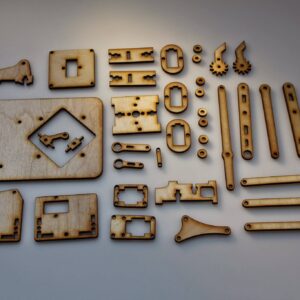

• Set of laser cut acrylic parts
• Custom PCB and Connecting Cable

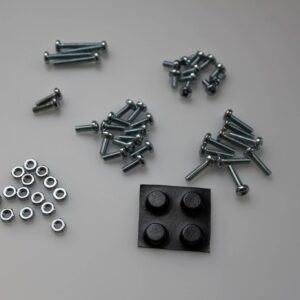

• Screws, nuts, rubber feet, googlie eyes and hex key tool

*without servo or Arduino

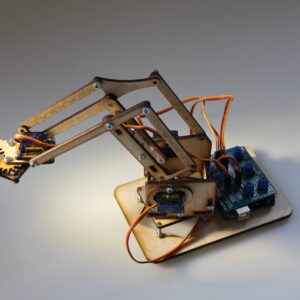

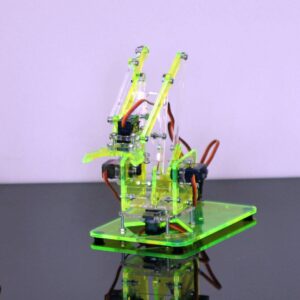

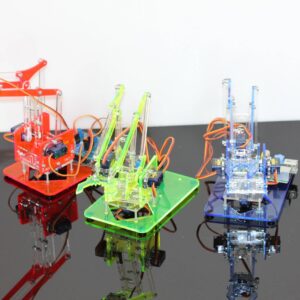

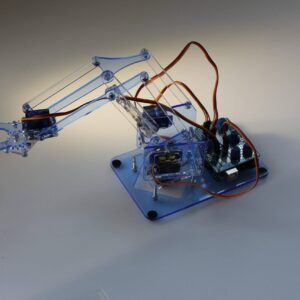

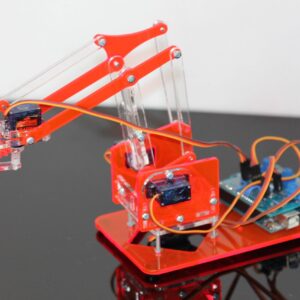

Robot Arm is a small “Hackable” Robot Arm.  We set out to build a very low cost and fun to use Robot Arm. Our design brief was to keep the parts count to a small number of cheap parts.

1. 4 hobby servos
2. 3mm Machine Screws (M3 Fixings)
3. No more than an A4 sheet of Acrylic or wooden

We’ve focused on the mechanical side up until now and it’s still very much a work in progress. This instructable will concentrate on building the MeArm.Using 4 potentiometers and very simple code this is an example of the kit in action

1. Gather Your Parts
2. Build the Base
3. First Servo
4. Building the Waist
5. Building the Left Shoulder
6. Attach Left Shoulder to Waist
7. Right Arm Construction
8.  Add Remaining Arm Parts
9. Gripper
10. Attach the Gripper and Fix to Base
11. Stand Back, Admire, Think About Controlling It
