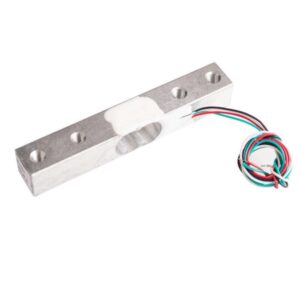

Load Cell 20kg – Straight Bar Weight Sensor for Accurate Measurement

The Load Cell 20kg – Straight Bar Weight Sensor is a high-precision sensor designed for measuring weight and force in industrial, commercial, and DIY electronics projects. With a 20kg capacity, this straight bar load cell provides accurate, reliable, and stable readings, making it perfect for Arduino, Raspberry Pi, and other microcontroller-based applications.

Ideal for engineers, hobbyists, and students, this load cell is commonly used in digital scales, industrial weight monitoring systems, robotics force sensing, and scientific experiments. Its robust construction, high sensitivity, and compact design ensure consistent performance in various environments.

Key Features

• Weight Capacity: 20kg for medium to heavy weight measurement projects.

• High Precision: Provides accurate and stable output for reliable readings.

• Straight Bar Design: Compact and easy to mount for various setups.

• Durable Material: Alloy steel construction ensures long-term stability and durability.

• Easy Integration: Compatible with Arduino, Raspberry Pi, and other microcontroller platforms.

• Compact & Lightweight: Space-saving design suitable for embedded or small-scale devices.

• Low Hysteresis & High Linearity: Minimizes measurement errors for precise readings.

Technical Specifications

• Model: Load Cell 20kg – Straight Bar

• Capacity: 20 kilograms

• Material: Alloy steel

• Output Type: mV/V analog signal

• Excitation Voltage: 5–10V DC (typical 5V)

• Non-Linearity: ±0.03% F.S.

• Hysteresis: ±0.03% F.S.

• Operating Temperature: -10°C to 40°C

• Connection Wires: Red (+Exc), Black (-Exc), Green (+Signal), White (-Signal)

• Dimensions: Compact straight bar suitable for medium to heavy-weight applications

Advantages of the 20kg Straight Bar Load Cell

1. High Accuracy: Provides precise weight measurement for loads up to 20kg.

2. Durable & Reliable: Alloy steel construction ensures long-lasting performance.

3. Compact Design: Easy to mount in digital scales, weighing machines, and embedded systems.

4. Low Power Operation: Efficient performance with microcontroller-based systems.

5. Versatile Applications: Suitable for industrial monitoring, robotics, DIY electronics, and educational projects.

Applications

The Load Cell 20kg – Straight Bar Weight Sensor is widely used in:

• Digital Weighing Scales: Perfect for kitchen scales, industrial scales, lab scales, or other devices requiring up to 20kg measurement.

• Robotics & Automation: Detect forces and weights in robotic arms, conveyor belts, and automated systems.

• Industrial Monitoring: Monitor load in machinery, packaging systems, and production lines.

• DIY Electronics Projects: Integrate with Arduino, Raspberry Pi, or other microcontrollers for smart weighing systems.

• Educational Kits: Ideal for teaching students about sensors, electronics, and load measurement.

• Scientific Experiments: Provides accurate weight readings for laboratory and research applications.

How It Works

The straight bar load cell uses a strain gauge principle. When a weight or force is applied, the strain gauge slightly deforms, producing a millivolt-level analog signal proportional to the applied load. This signal can be amplified and processed using a microcontroller with an HX711 amplifier module.

The sensor is calibrated to ensure linear response with minimal hysteresis, providing stable and precise readings for weights up to 20kg. Its robust alloy steel construction ensures reliable performance even under continuous or repeated loading.

Example Project

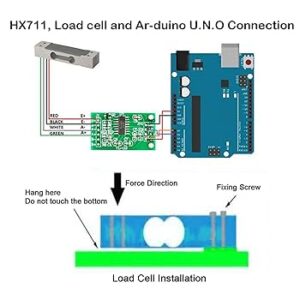

A typical application is a smart digital scale. The load cell measures weight, and an Arduino or Raspberry Pi reads the signal via an HX711 amplifier, displaying the accurate weight on an LCD or touchscreen interface.

Another application is a robotic gripper where the load cell detects gripping force for medium-weight objects, ensuring safe handling. It is also suitable for industrial conveyor monitoring, automated packaging, or laboratory force measurement projects.

Why Choose the 20kg Straight Bar Load Cell

The Load Cell 20kg – Straight Bar Weight Sensor is precise, durable, and easy to integrate. Its high accuracy, compact design, and wide compatibility make it ideal for a variety of applications—from digital weighing scales to robotics and industrial monitoring.

Whether for DIY electronics, laboratory experiments, or commercial applications, this load cell ensures reliable and consistent weight measurement for medium to heavy loads.

Conclusion

The Load Cell 20kg – Straight Bar Weight Sensor is a versatile and high-performance sensor for Arduino, Raspberry Pi, and professional applications. With accurate readings, durable alloy steel construction, and compact design, it is perfect for digital scales, robotics force sensing, industrial monitoring, and educational projects.

Upgrade your project with this 20kg straight bar load cell for accurate, reliable, and easy-to-integrate weight measurement.
