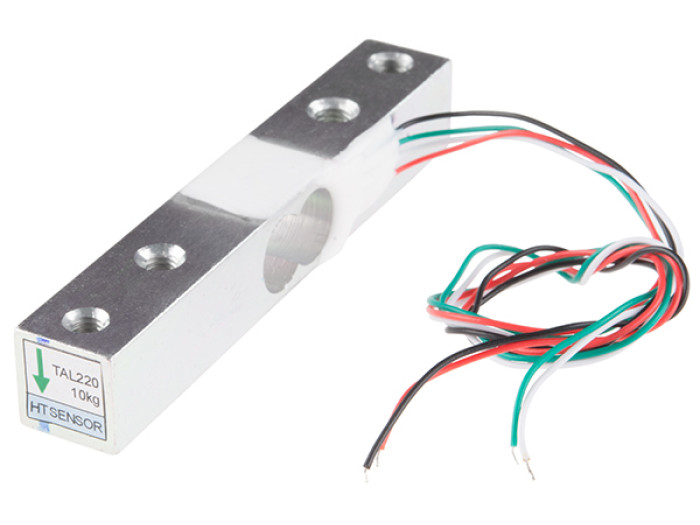

Load Cell 10kg – Straight Bar Weight Sensor for Accurate Force Measurement

The Load Cell 10kg – Straight Bar Weight Sensor is a high-precision sensor designed for measuring weight and force in industrial, laboratory, and DIY electronics projects. With a 10kg capacity, this straight bar load cell provides accurate and reliable readings, making it perfect for Arduino, Raspberry Pi, and other microcontroller-based projects.

Ideal for engineers, hobbyists, and students, this load cell is commonly used in digital weighing scales, industrial load monitoring, robotic force detection, and scientific experiments. Its robust design, high sensitivity, and compact form factor ensure consistent and precise performance across a variety of applications.

Key Features

• Weight Capacity: 10kg for medium-scale weight measurement projects.

• High Precision: Provides accurate and stable outputs for reliable measurement.

• Straight Bar Design: Compact and easy to mount for different setups.

• Durable Material: Alloy steel construction for long-lasting stability and reliability.

• Easy Integration: Compatible with Arduino, Raspberry Pi, and other microcontrollers.

• Compact & Lightweight: Space-efficient design suitable for small or embedded systems.

• Low Hysteresis & High Linearity: Minimizes error for precise readings.

Technical Specifications

• Model: Load Cell 10kg – Straight Bar

• Capacity: 10 kilograms

• Material: Alloy steel

• Output Type: mV/V analog signal

• Excitation Voltage: 5–10V DC (typical 5V)

• Non-Linearity: ±0.03% F.S.

• Hysteresis: ±0.03% F.S.

• Operating Temperature: -10°C to 40°C

• Connection Wires: Red (+Exc), Black (-Exc), Green (+Signal), White (-Signal)

• Dimensions: Compact straight bar suitable for medium-weight applications



Advantages of the 10kg Straight Bar Load Cell

1. High Accuracy: Offers precise weight measurement for up to 10kg.

2. Durable & Reliable: Alloy steel construction ensures longevity and consistent readings.

3. Compact Design: Easy to mount in small platforms, weighing devices, and embedded systems.

4. Low Power Operation: Efficient performance for Arduino and microcontroller systems.

5. Versatile Applications: Suitable for digital scales, robotics, industrial monitoring, and educational projects.

Applications

The Load Cell 10kg – Straight Bar Weight Sensor is widely used in:

• Digital Weighing Scales: Perfect for kitchen scales, industrial scales, or lab scales requiring up to 10kg measurement.

• Robotic Force Sensing: Detect applied forces or weights for robotic arms and automated systems.

• Industrial Monitoring: Measure load in machinery, conveyor belts, or packaging systems.

• DIY Electronics Projects: Integrate with Arduino, Raspberry Pi, or other microcontrollers for smart weighing solutions.

• Educational Kits: Ideal for teaching students about sensors, electronics, and load measurement.

• Scientific Experiments: Provides accurate weight readings for laboratory and research applications.

How It Works

The straight bar load cell uses a strain gauge mechanism. When a weight or force is applied, the strain gauge slightly deforms, changing its electrical resistance. This produces a millivolt-level analog signal proportional to the applied load, which can be read and processed using a microcontroller with an HX711 amplifier module.

The sensor’s design ensures linear response with minimal hysteresis, providing stable and precise measurements for weights up to 10kg. Its robust alloy steel construction ensures reliability in repeated or continuous measurement applications.

Example Project

A typical project is a smart digital scale. The load cell measures weight, and an Arduino or Raspberry Pi reads the signal via an HX711 amplifier, displaying the accurate weight on an LCD or touchscreen.

Another example is a robotic gripper where the load cell detects the gripping force applied to objects, ensuring safe handling of medium-weight items. It is also ideal for industrial conveyor monitoring or automated packaging systems.

Why Choose the 10kg Straight Bar Load Cell

The Load Cell 10kg – Straight Bar Weight Sensor is precise, durable, and easy to integrate. Its compact design, high accuracy, and wide compatibility make it perfect for digital weighing, robotics, and educational projects.

Whether for industrial monitoring, lab experiments, or DIY electronics, this load cell ensures reliable and consistent weight measurement for medium-weight applications.

Conclusion

The Load Cell 10kg – Straight Bar Weight Sensor is a versatile and high-performance sensor for Arduino, Raspberry Pi, and professional applications. With accurate readings, durable alloy steel construction, and compact design, it is ideal for digital scales, robotic force detection, and laboratory experiments.

Upgrade your project with this 10kg straight bar load cell for accurate, reliable, and easy-to-integrate weight measurement.
