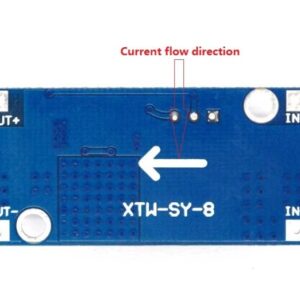

LM2577 DC – DC Converter Step-Up 2.5A

80.00 EGP

LM2577 DC – DC Converter Step-Up 2.5A

Out of stock

SKU: MD-22544 Category: Tags: ,

Description

Description

  • Modules nature: Non-isolated step-up (Boost)
  • Rectification: Non-synchronous rectification
  • Input voltage: DC 3V~30V
  • Output voltage: DC 4V~35V
  • Input current: 3A (max), No-load current 15mA
  • Power Output: 15W, if install heatsink can reach 20W (MAX), Please do not exceed 20W, or it would burn out.
  • Conversion efficiency: 92% (highest)
  • Switching frequency: 50KHz
  • Output ripple: 50mV (max)
  • Load regulation: ± 0.5%
  • Voltage regulation: ± 0.5%
  • Operating Temperature: -40 ° C to 85 ° C
  • Dimension: 48 x 23 x 14 (mm)
  • Short Circuit Protection: NONE
  • If the output power greater than 15W, please install heat sink
  • Package includes: 1 x DC Boost Converter
