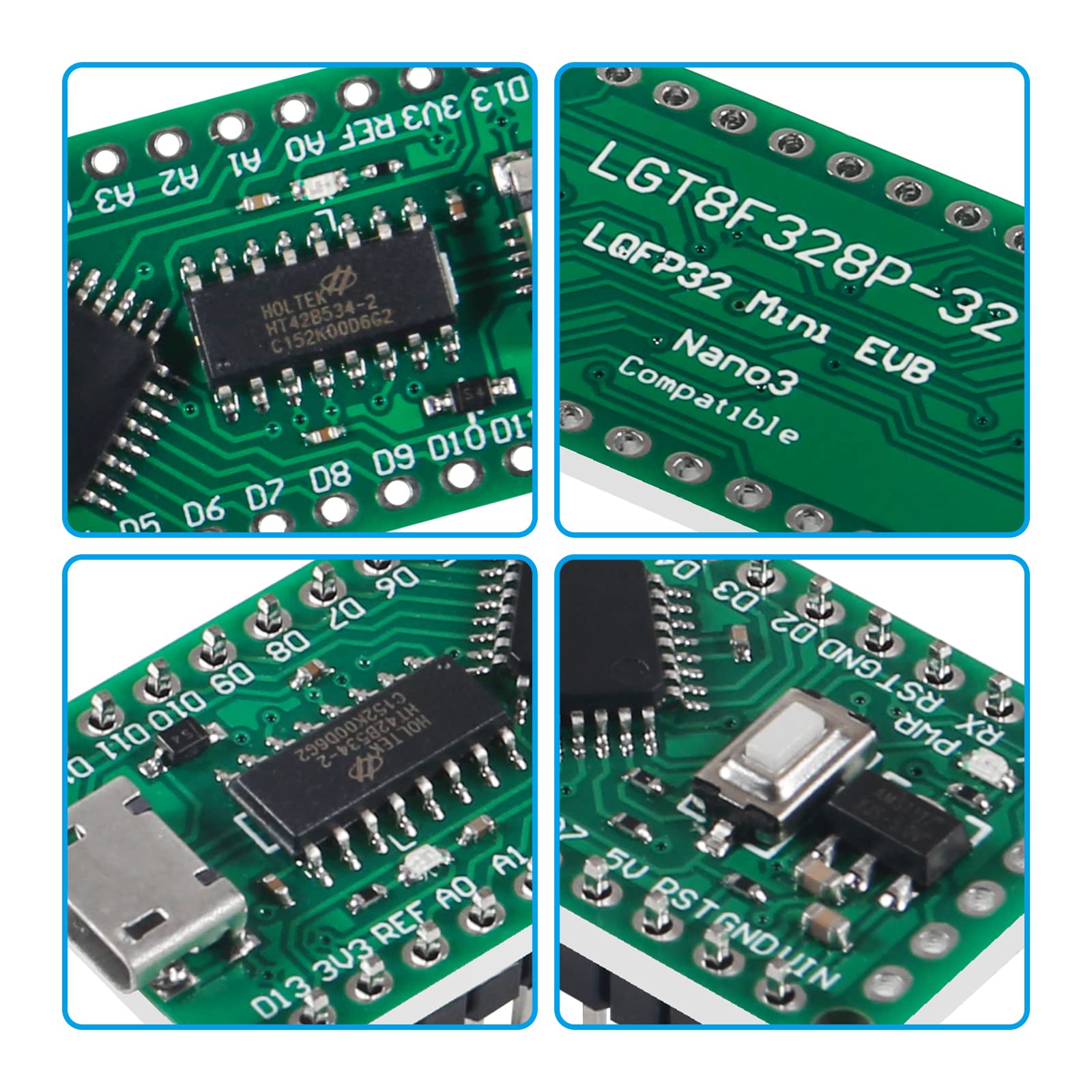

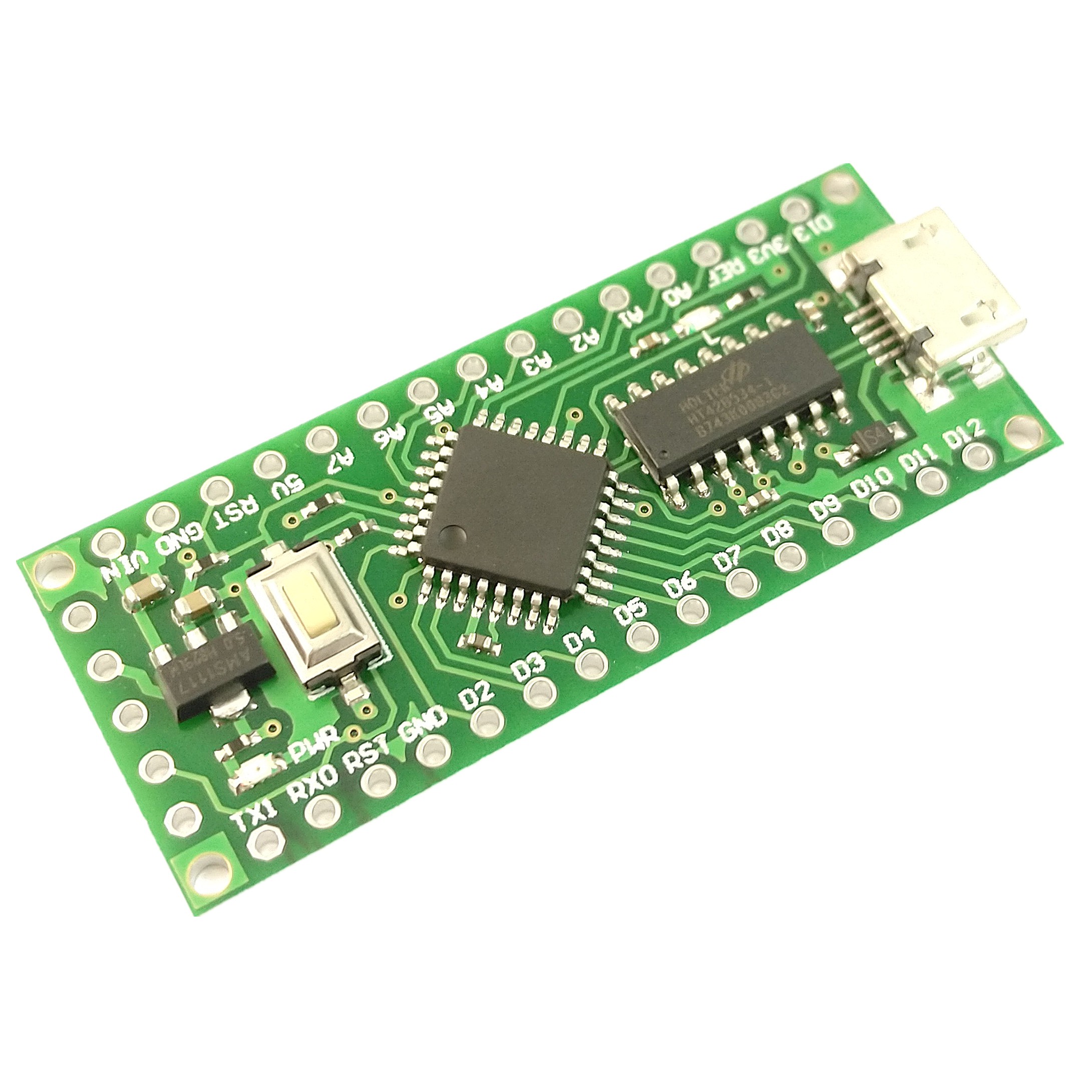

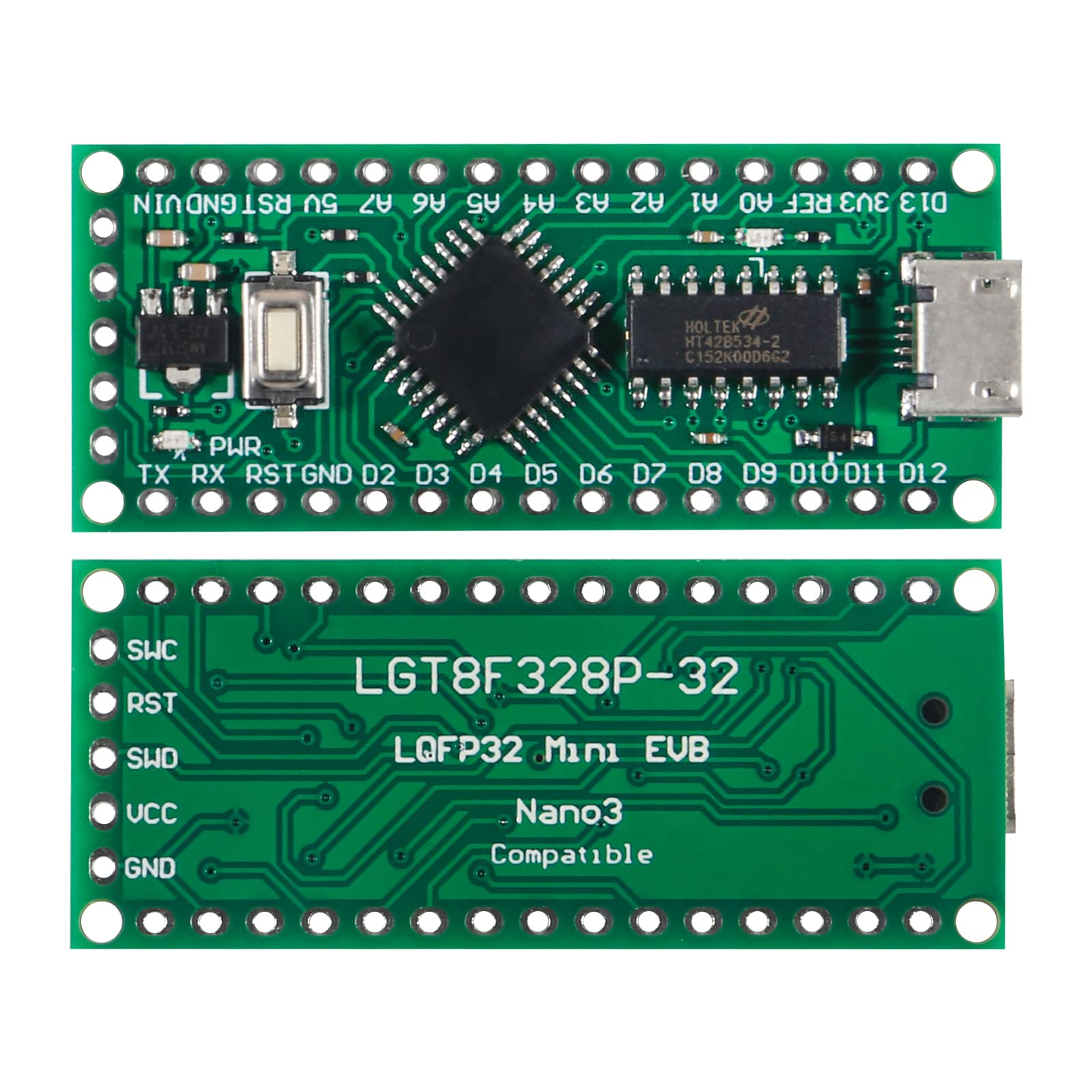

LGT8F328P HT42B534 LQFP32 IC Replaces Arduino NANO V3.0
215.00 EGP
The LGT8F328P + HT42B534 (LQFP32) is a powerful, cost-effective drop-in replacement for the Arduino Nano V3.0, offering enhanced performance, lower power consumption, and full compatibility with the Arduino ecosystem. This chipset combines the LGT8F328P MCU (an ATmega328P alternative) with the HT42B534 USB-to-UART converter, ensuring seamless programming and communication.
Description
🔹 Key Features
✅ 1. Powerful LGT8F328P MCU (ATmega328P Alternative)
-
8-bit AVR-compatible core running at 16MHz (up to 32MHz with PLL)
-
32KB Flash + 2KB SRAM + 1KB EEPROM (Same as ATmega328P)
-
Hardware PWM, 10-bit ADC, UART, SPI, I2C (Fully Arduino-compatible)
-
Lower power consumption than ATmega328P
✅ 2. Built-in HT42B534 USB-to-UART Converter
-
Replaces CH340G/FT232RL (No driver issues on modern OS)
-
Stable USB communication (Supports auto-reset for Arduino IDE)
-
Plug-and-play (Works with Windows, Linux, macOS)
✅ 3. Full Arduino Nano V3.0 Pin Compatibility
-
Same pinout & form factor (DIP-30 package compatible)
-
All digital & analog pins match Arduino Nano
-
Works with existing Arduino shields & libraries
✅ 4. Enhanced Performance & Efficiency
-
Lower voltage operation (2.7V–5.5V) – Better for battery-powered projects
-
Improved ADC accuracy (10-bit, better than some ATmega328P clones)
-
More stable clock source (Less drift than ceramic resonator-based boards)
✅ 5. Cost-Effective Alternative
-
Cheaper than genuine Arduino Nano
-
Reliable performance (No counterfeit ATmega328P risks)
🔹 Applications
✔ Arduino Nano V3.0 Replacement (Drop-in solution)
✔ DIY Electronics & Prototyping (Sensors, Robotics, LED Control)
✔ Educational & Hobbyist Projects (Fully Arduino-compatible)
✔ Low-Power Battery Devices (Better efficiency than ATmega328P)
🔹 Technical Specifications
| Parameter | LGT8F328P + HT42B534 | Arduino Nano V3.0 |
|---|---|---|
| MCU | LGT8F328P (AVR-compatible) | ATmega328P |
| Clock Speed | 16MHz (PLL up to 32MHz) | 16MHz |
| Flash Memory | 32KB | 32KB |
| SRAM | 2KB | 2KB |
| EEPROM | 1KB | 1KB |
| USB Interface | HT42B534 (USB-UART) | CH340G/FT232RL |
| Operating Voltage | 2.7V–5.5V | 5V |
| ADC Resolution | 10-bit | 10-bit |
| PWM Pins | 6 | 6 |
| Compatibility | Fully Arduino IDE-supported | Original Arduino |
🔹 Why Choose This Over Arduino Nano?
✔ Same functionality, lower cost
✔ Better power efficiency (2.7V–5.5V range)
✔ No driver issues (HT42B534 works out-of-the-box)
✔ Stable performance (No counterfeit chip risks)
