75.00 EGP

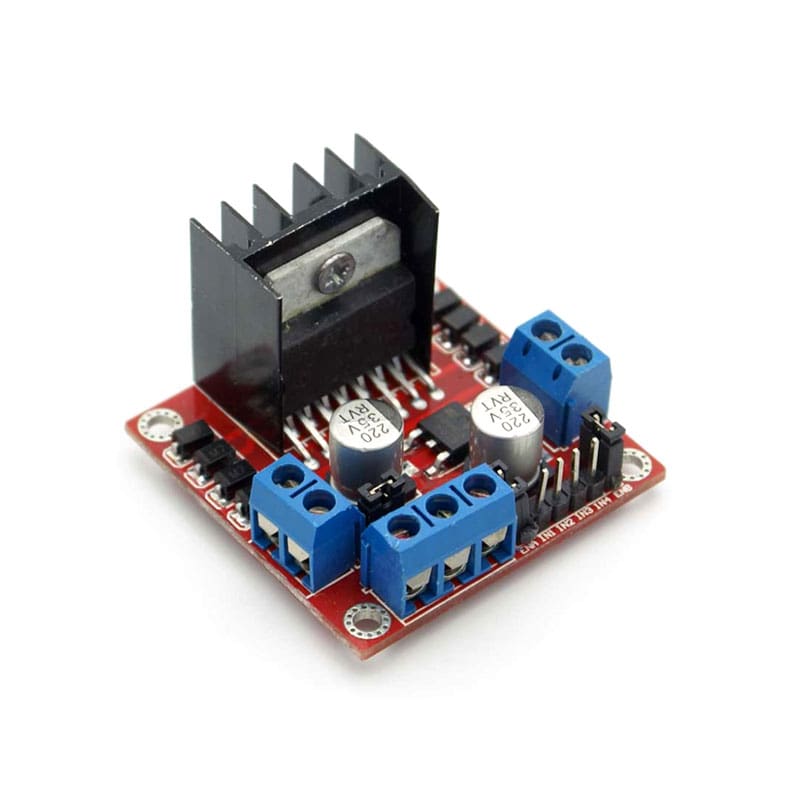

Power and control your DC motors, stepper motors, and solenoids with the versatile L298 Motor Driver Module—a high-performance dual H-bridge driver designed for robotics, automation, and DIY electronics projects.

SKU: MD-22652 Category: Tags: ,

Description

Key Features:

✔ Dual H-Bridge Design – Controls two DC motors (or one stepper motor) bidirectionally with up to 2A per channel (peak 3A).
✔ Wide Voltage Range – Supports motor voltage from 5V to 35V, making it compatible with 6V, 12V, and 24V motors.
✔ Logic-Level Inputs – Works with 5V TTL/CMOS signals (Arduino, Raspberry Pi, PIC, etc.).
✔ Built-in Protection – Features thermal shutdown, overcurrent protection, and freewheeling diodes for safe operation.

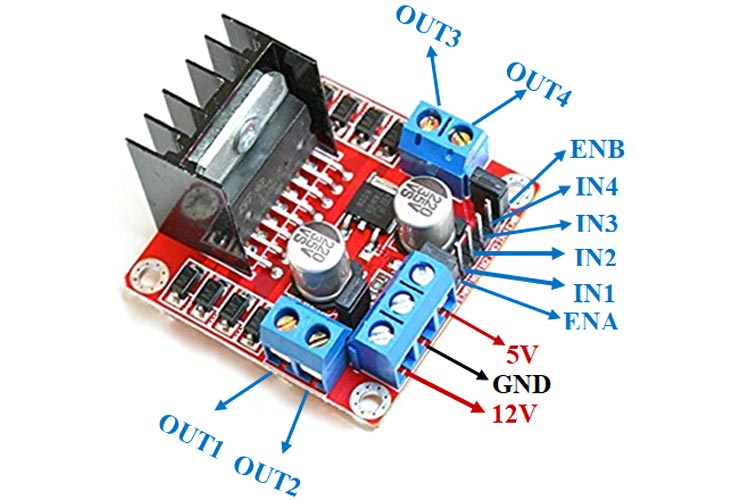

✔ Easy Interface – Simple ENA, ENB, IN1-IN4 control pins for PWM speed and direction control.
✔ Heat Sink & Screw Terminals – Includes an aluminum heat sink and terminal blocks for secure motor and power connections.

Specifications:

  • Driver IC: L298N

  • Operating Voltage: 5V – 35V (motor), 5V (logic)

  • Max Current: 2A per channel (3A peak)

  • Control Signals: TTL/CMOS compatible

  • Mounting Holes: For secure installation

  • Dimensions: [Include if available, e.g., 43mm x 43mm]

Applications:

  • Robotics (wheeled robots, arms)

  • DIY projects (CNC, 3D printers, RC vehicles)

  • Automation systems (conveyor belts, actuators)

🔧 Powerful. Precise. Reliable.
