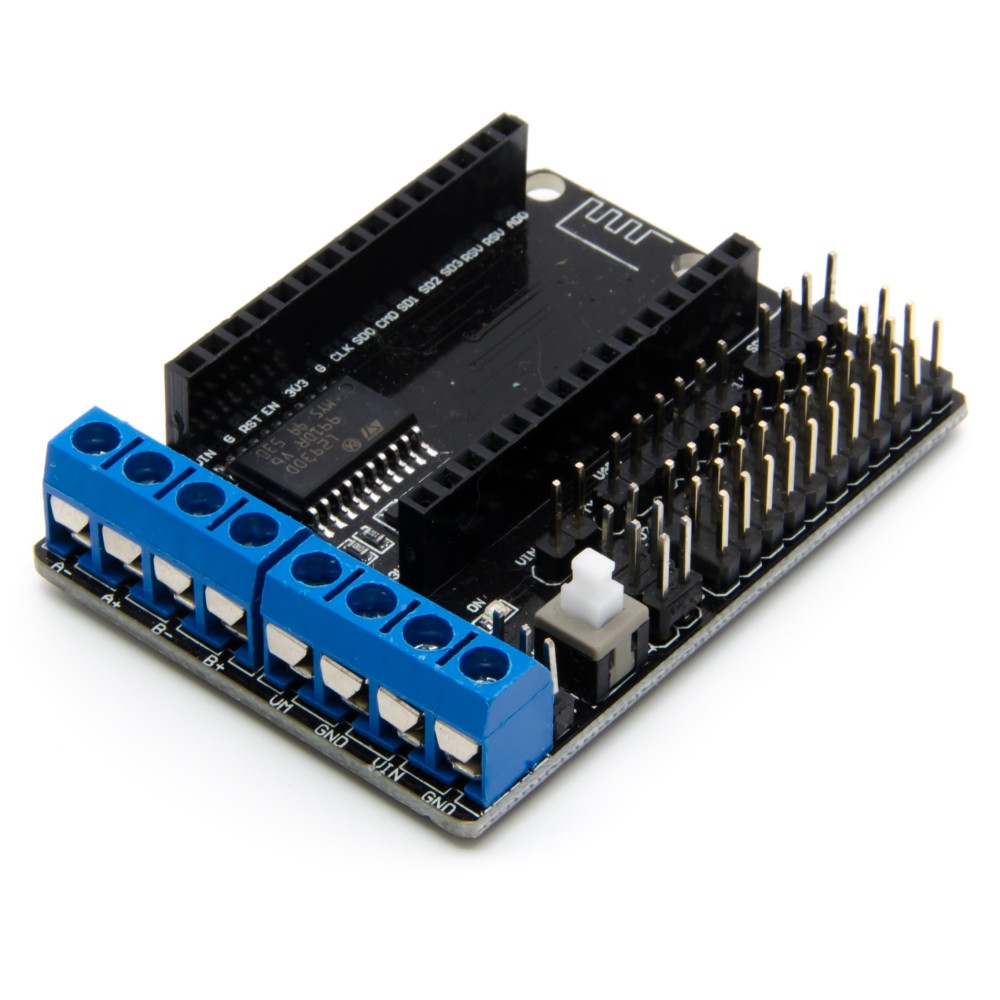

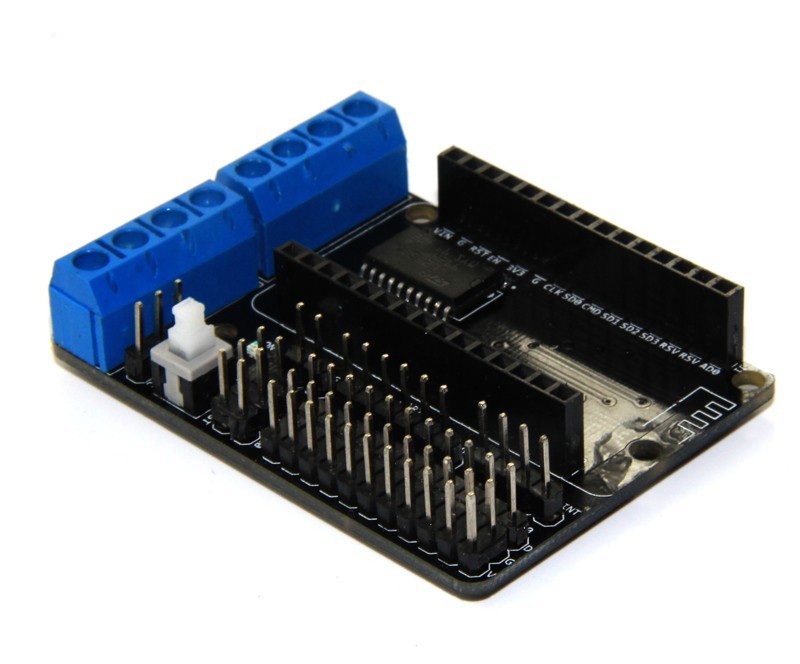

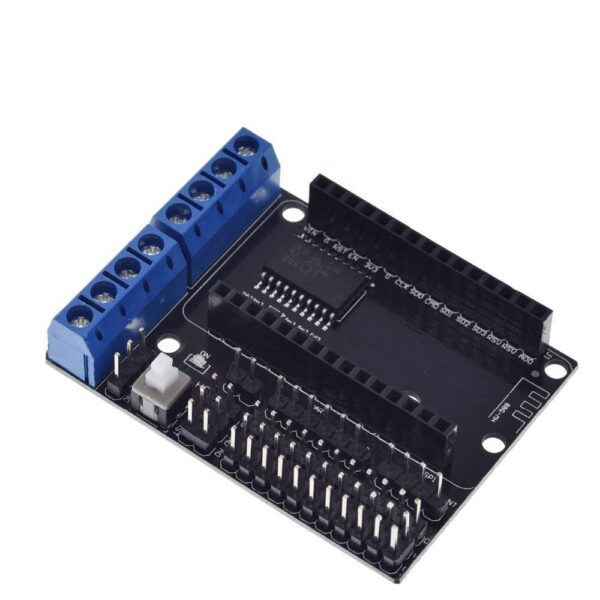

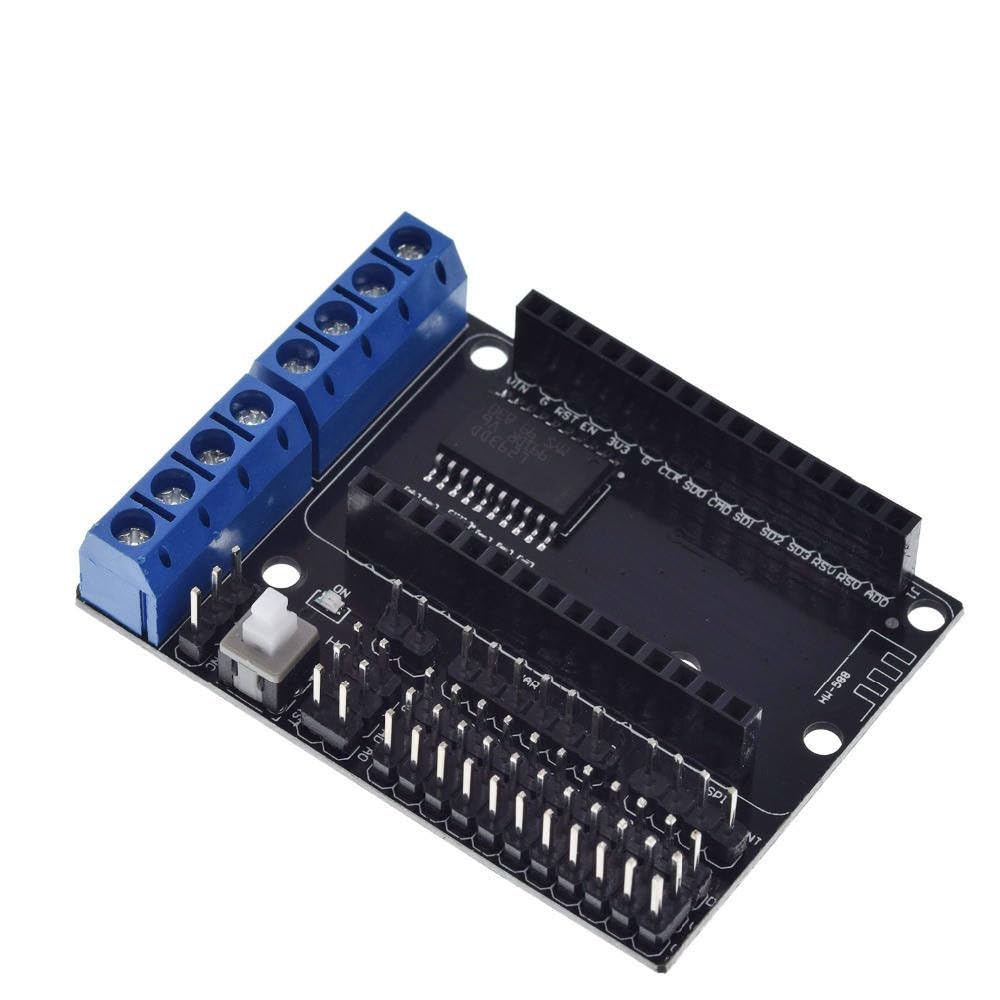

L293D Shield for Node MCU ESP8266

85.00 EGP

In stock


  • On Board motor drive L293D IC, support two channels of DC motors via screw terminals
  • Motor power supply (VM): 4.5V ~ 36VDC, can be a separate power supply
  • Control power (VIN): 4.5V ~ 9V (10V MAX), can be powered separately
    • Module provides short-circuit header pin (short VM and VIN), you can easily use one power (which must be 4.5V ~ 9V) simultaneously drive and control the motor.
  • Compatible with Node MCU (narrow width)
  • Logic Operating current: ≤60mA (Vi = L), ≤22mA (Vi = H);
  • Motor Driver Output Current Per Channel: ≤1.2A (Based on L293D)
  • Maximum power dissipation: 4Watt (T = 90 ℃)
  • Control signal input level:
    • High: 2.3V≤VIH≤VIN
    • Low: -0.3V≤VIL≤1.5V
  • Working temperature: -25 ℃ ~ + 125 ℃
  • Drive Type: Dual high-power H-bridge driver (L293D)
  • With Node MCU based on ESP8266, it supports:
    • Support wireless 802.11 b / g / n standards
    • Support STA / AP / STA + AP three operating modes
    • Built-in TCP / IP protocol stack to support multiple TCP Client connection (5 MAX)
    • D0 ~ D8, SD1 ~ SD3: used as GPIO, PWM, IIC, etc., port driver capability 15mA
    • AD0: 1 Road ADC
    • Current: continuous transmission: ≈70mA (200mA MAX), Standby: <200uA
    • Transfer rate: 110-460800bps
    • Support UART / GPIO data communication interface
    • Remote firmware upgrade (OTA)
    • Smart Link supports intelligent networking capabilities
    • It can work at many modes, such as: AP mode and STA mode
  • Motor Control Pins:
    • D1(Node MCU) = GPIO5(ESP8266) = PWM of Motor A
    • D3(Node MCU) = GPIO0(ESP8266) = DIR of Motor A
    • D2(Node MCU) = GPIO4(ESP8266) = PWM of Motor B
    • D4(Node MCU) = GPIO2(ESP8266) = DIR of Motor B
wws Maya / Pre-sale Questions Need Help? Contact Us via WhatsApp
Purchase this product now and earn 85 Points!
SKU: ESP-8266 Category:

Node MCU is an open-source development board, based on famous ESP8266 chip (ESP12E or ESP12F), which is a 32-bit controller with integrated WIFI transceiver. And it is very low cost. Best of all, this board is Arduino IDE compatible, you can utilize the millions of example codes and libraries on Node MCU. Besides Arduino IDE or Arduino programming langauge, Node MCU supports many other languages like LUA script, micro Python etc. With these scripting languages, you can develop your prototype within a few script lines.

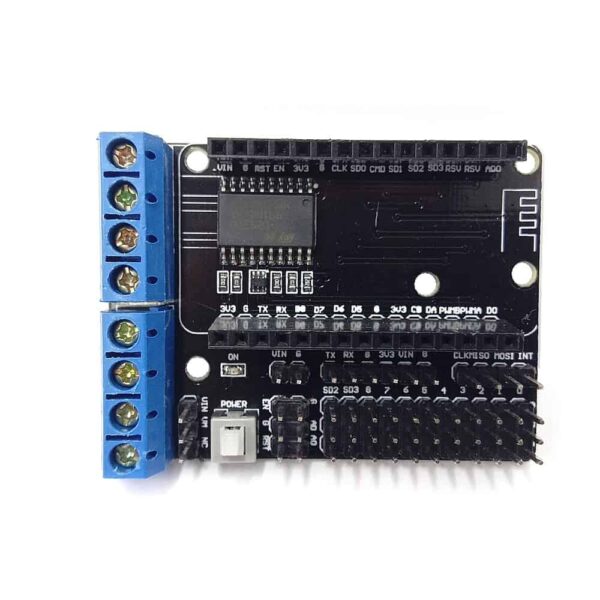

This shield is designed for the Node MCU V2 (narrow width), it comes with L293D motor driver and breakout the GPIO to headers for easy access when connecting to various sensor modules. With the L293D, this shield supports the control of  two (2) brush motor, start, stop, brake, direction and also speed. The shield also extends the GPIO of NodeMCU to header pins in SVG sequence (RC servo alike), not to forget the UART , SPI, Power and GND pins. There are options to power the board separately or with single power source. The board also comes with a power LED indicator and latching push button as power switch.

This shield is very convenient and cheap to build or DIY a WIFI RC smart car or any type of robotics or even UAV platform.

Note: Compatible with narrow width Node MCU, get it from here. NOT compatible with Node MCU V3 (wider width)
