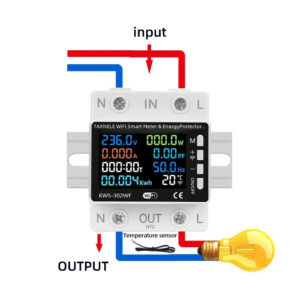

KWS-302WF 63A 1-Phase WiFi Power Protector – 8-in-1 Smart Energy Meter

The KWS-302WF 63A 1-Phase WiFi Power Protector – 8-in-1 Meter is an advanced smart energy monitoring and protection device designed for modern electrical systems. Combining real-time power measurement, intelligent protection, and remote Wi-Fi control, this device is ideal for homes, offices, factories, commercial buildings, and renewable energy installations.

Built with a high-definition color display, robust ABS + PC housing, and DIN rail mounting, the KWS-302WF delivers professional-grade performance in a compact and user-friendly form. Whether you want to monitor electricity consumption, prevent voltage damage, or control power remotely from your smartphone, this all-in-one power protector offers reliable, precise, and intelligent energy management.

Smart 8-in-1 Power Monitoring & Protection

The KWS-302WF is more than just a power meter—it integrates eight critical electrical measurements into one device. It accurately tracks voltage, current, power, energy consumption (kWh), frequency, power factor, temperature, and time, providing a complete overview of your electrical system at a glance.

With a voltage range of 170–270V and current capacity up to 63A, it is suitable for high-load single-phase circuits. The meter supports power measurement up to 17 kW, making it ideal for heavy appliances, air conditioners, industrial equipment, EV chargers, and solar inverter systems.

---

Built-In Electrical Protection for Maximum Safety

Electrical instability can cause serious damage to appliances and wiring. The KWS-302WF includes intelligent protection mechanisms that automatically disconnect power when unsafe conditions are detected:

• Over-voltage protection prevents damage caused by voltage spikes

• Under-voltage protection safeguards equipment during low voltage conditions

• Over-current protection stops excessive current flow to avoid overheating and fire risks

Once conditions return to normal, the device can automatically restore power, ensuring continuous protection without manual intervention. The power-off memory function retains your settings even after an outage.

---

Wi-Fi Connectivity & Remote Control

Thanks to built-in Wi-Fi support, the KWS-302WF allows you to monitor and control your electrical system anytime, anywhere through a compatible mobile application. From your smartphone, you can:

• View real-time voltage, current, power, and energy usage

• Set protection thresholds for voltage and current

• Turn power ON or OFF remotely

• Track historical energy consumption

• Manage timers up to 999 hours

This makes it an excellent solution for smart homes, remote sites, rental properties, and energy-conscious users who want full visibility and control.

To learn more about how Wi-Fi energy meters are transforming smart electrical systems, visit this external resource:
👉 https://en.wikipedia.org/wiki/Energy_monitor

---

Temperature Monitoring for Enhanced Protection

The KWS-302WF includes support for an external temperature sensor, enabling accurate temperature monitoring from -20°C to +150°C. This feature is especially useful for detecting overheating in distribution panels, equipment rooms, or industrial environments. When combined with over-current protection, it adds an extra layer of safety and reliability.

---

Clear HD Color Display & Easy Installation

The high-definition color screen displays all electrical parameters clearly and intuitively, allowing quick local monitoring without needing a phone or computer. The device is designed for standard DIN rail mounting, making installation fast and compatible with most electrical distribution boards.

Its compact size (78.8 × 65.6 × 66 mm) ensures it fits neatly into control panels without occupying excessive space.

---

Durable Construction & Wide Operating Range

Manufactured using high-quality ABS and PC plastic, the KWS-302WF is built for durability and long-term use. It operates reliably across a wide temperature range, making it suitable for both indoor and demanding electrical environments.

---

Key Features

• 8-in-1 smart energy meter and power protector

• Voltage range: 170–270V

• Current range: 0–63A

• Power measurement up to 17 kW

• Energy monitoring: 0–9999 kWh

• Frequency measurement: 50–60 Hz

• Power factor measurement: 0–1

• External temperature sensor support (-20°C to +150°C)

• Wi-Fi remote monitoring and control via mobile app

• Adjustable protection limits

• Timer function up to 999 hours

• Over-voltage, under-voltage, and over-current protection

• Power-off memory function

• High-definition color display

• DIN rail mounting for easy installation

• Durable ABS + PC housing

---

Ideal Applications

• Smart homes and apartments

• Commercial buildings

• Industrial power monitoring

• Solar and renewable energy systems

• EV charging stations

• Electrical panels and distribution boards
