I2C Arduino Serial Module For LCD 16*2

55.00 EGP

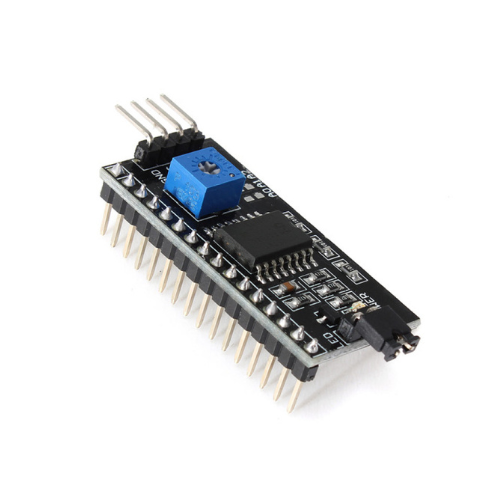

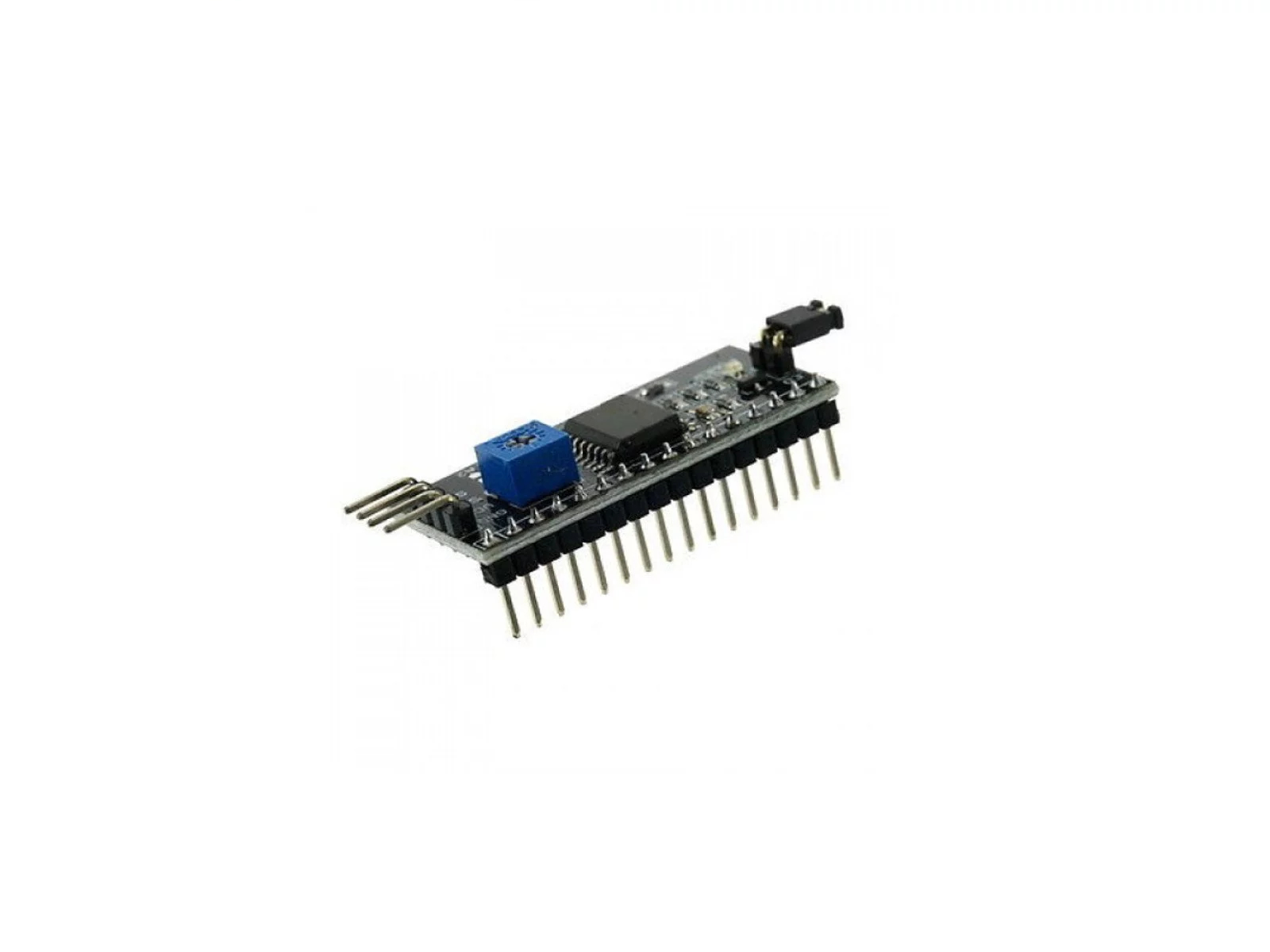

This is I2C Arduino Serial Module For LCD board that can be connected to a standard HD44780 compatible 16×2 , 20×4 or 20×2 Character Display Module that supports 4 bit mode.This board has a PCF8574 I2C chip that converts I2C serial data to parallell data for the LCD display.

SKU: MD-22653 Category: Tags: ,

Description

  • This is a great LCD display compatible with Gadgeteer modules. With limited pin resources, your project will quickly run out of resources using normal LCDs.

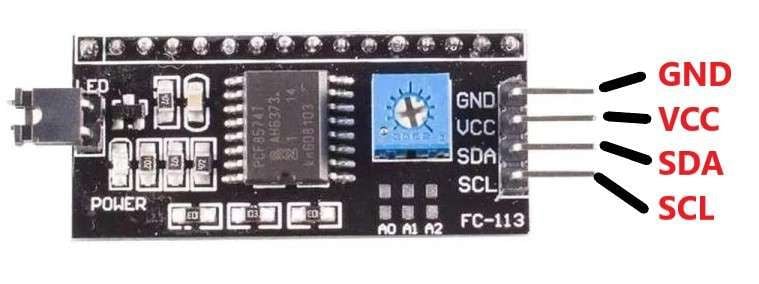

  • With this I2C interface LCD module, you only need 2 lines (I2C)to display the information.
  • If you already have I2C devices in your project, this LCD module actually cost no more resources at all.
  • The address can be set from 0x20-0x27.Fantastic for Arduino.
  • Power Supply: 5V
  • Serial I2C control of LCD display using PCF8574
  • Backlight can be enabled or disabled via a jumper on the board
  • Contrast control via a potentiometer
  • Can have 8 modules on a single I2C bus (change address via solder jumpers)address, allowing
  • Size: 41.6mm x 19.2mm

Package included :

1 x I2C Arduino Serial Module For LCD
