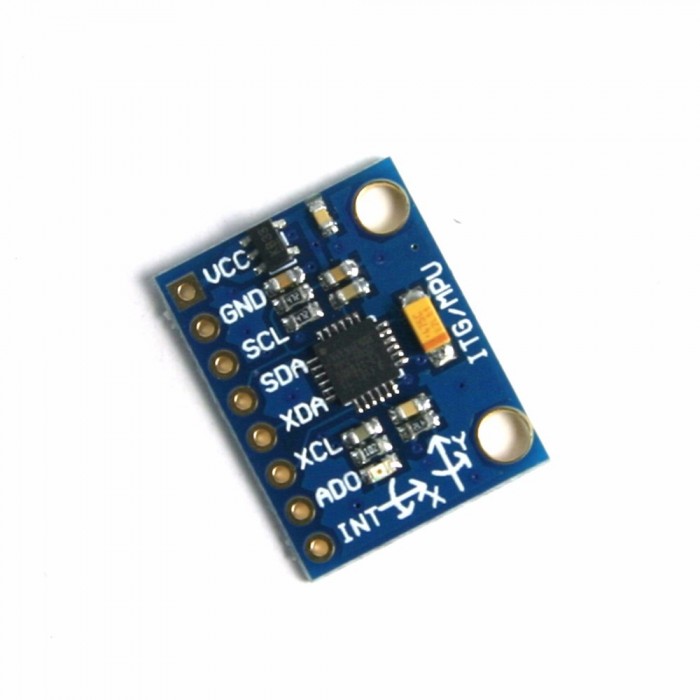

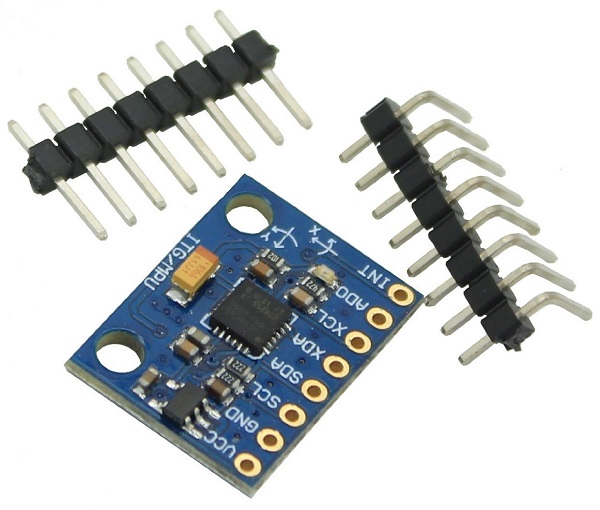

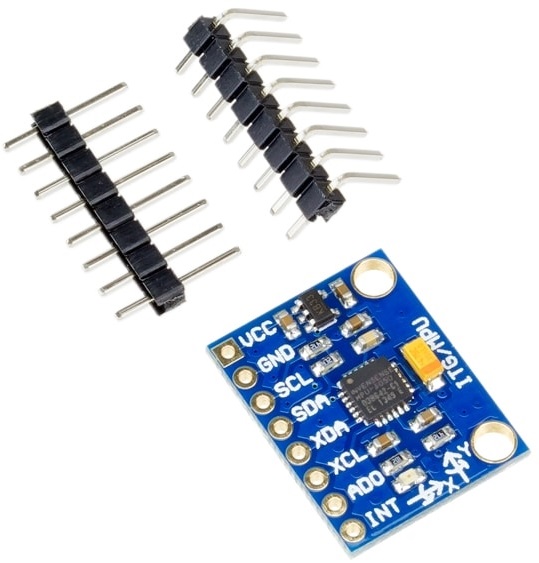

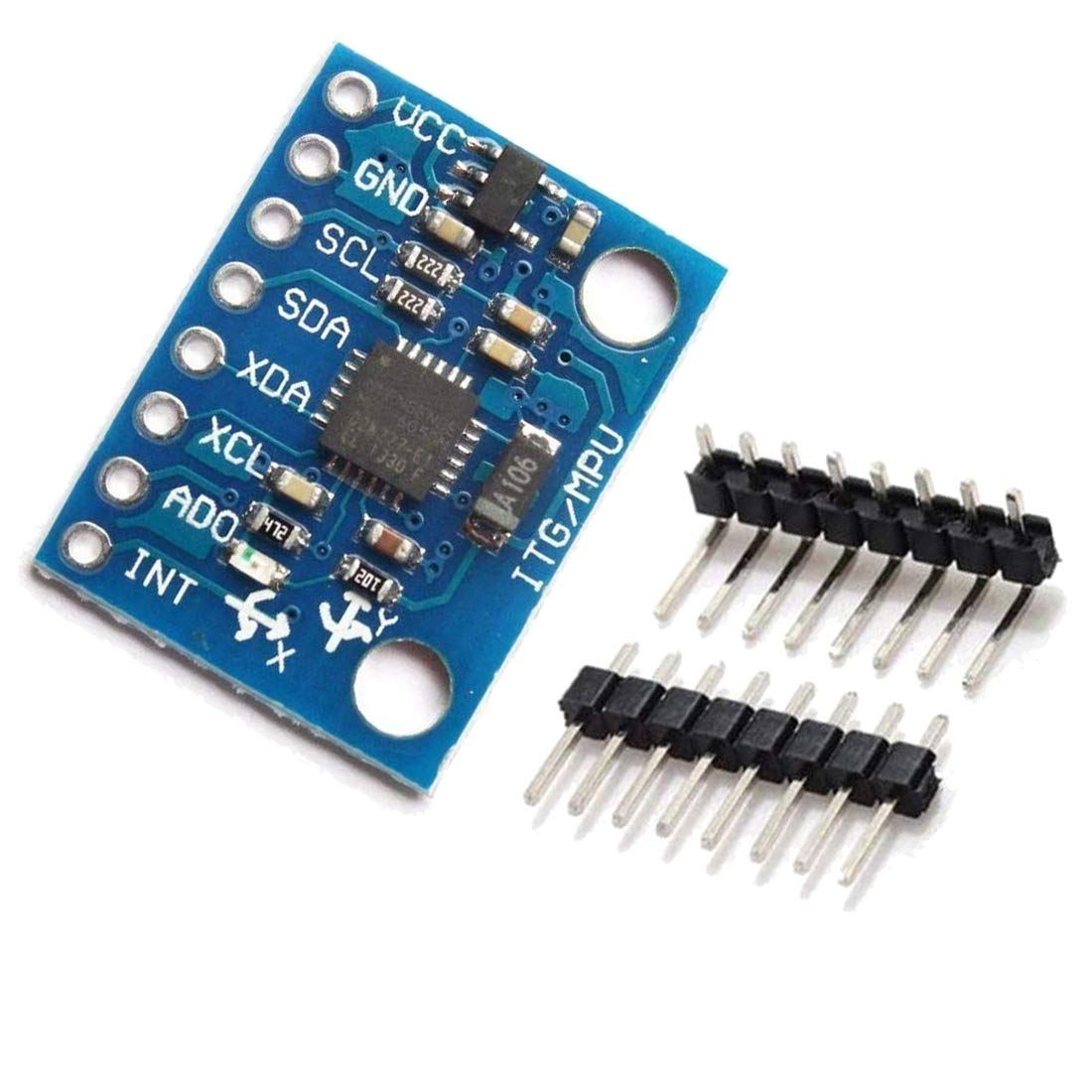

GY-521 MPU6050 Triple 3-Axis Accelerometer Gyroscope I2C

125.00 EGP

The GY-521 module is a compact and powerful sensor board based on the MPU6050 chip, which combines a 3-axis accelerometer and a 3-axis gyroscope in a single package. This module is ideal for motion tracking, gesture detection, and stabilization in a wide range of applications including robotics, drones, gaming, and wearable tech.

SKU: MD-22929 Category: Tags: ,

Description

✅ Features:

  • 6 Degrees of Freedom (6DoF): Combines a 3-axis accelerometer and 3-axis gyroscope for comprehensive motion sensing.

  • High Precision: Measures acceleration and angular velocity with excellent stability and accuracy.

  • Built-in Digital Motion Processor (DMP): Supports motion processing algorithms onboard, reducing load on host MCU.

  • I2C Communication: Easy to interface with Arduino, Raspberry Pi, ESP32, and other microcontrollers using I2C protocol.

  • Compact and Lightweight: Ideal for space-constrained and portable applications.

✅ Technical Specifications:

  • Sensor Chip: MPU6050

  • Accelerometer Range: ±2g, ±4g, ±8g, ±16g

  • Gyroscope Range: ±250°/s, ±500°/s, ±1000°/s, ±2000°/s

  • Operating Voltage: 3V – 5V (onboard regulator)

  • Communication Interface: I2C (default address 0x68)

  • Onboard Components: 3.3V voltage regulator, pull-up resistors for I2C lines

  • Mounting Hole: 2mm for easy installation

  • PCB Dimensions: Approx. 20mm x 16mm

🎯 Applications:

  • Drones and flight controllers

  • Robotics and automation systems

  • Gesture-controlled devices

  • Wearable fitness and motion trackers

  • Stabilization platforms

  • Gaming and VR controllers

This module offers a reliable, affordable, and highly versatile solution for motion detection projects, making it a favorite among hobbyists, engineers, and students alike.
