Description

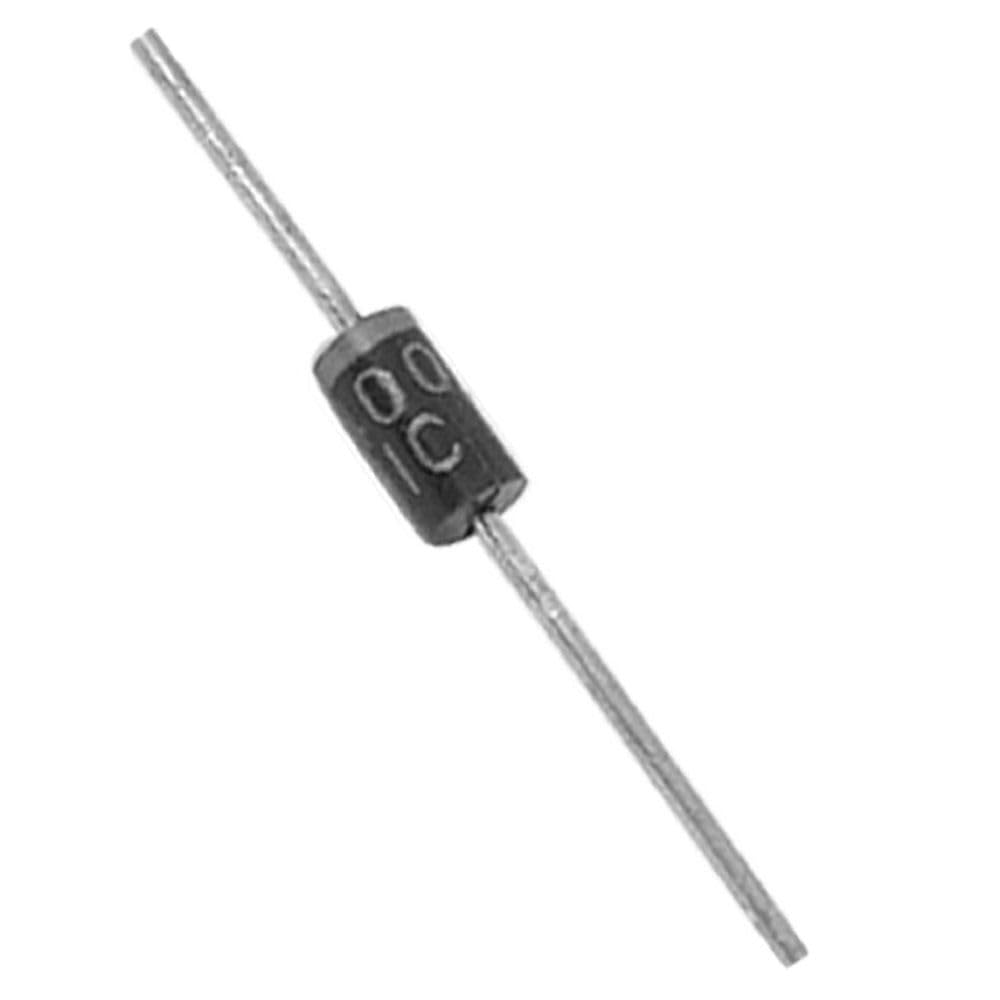

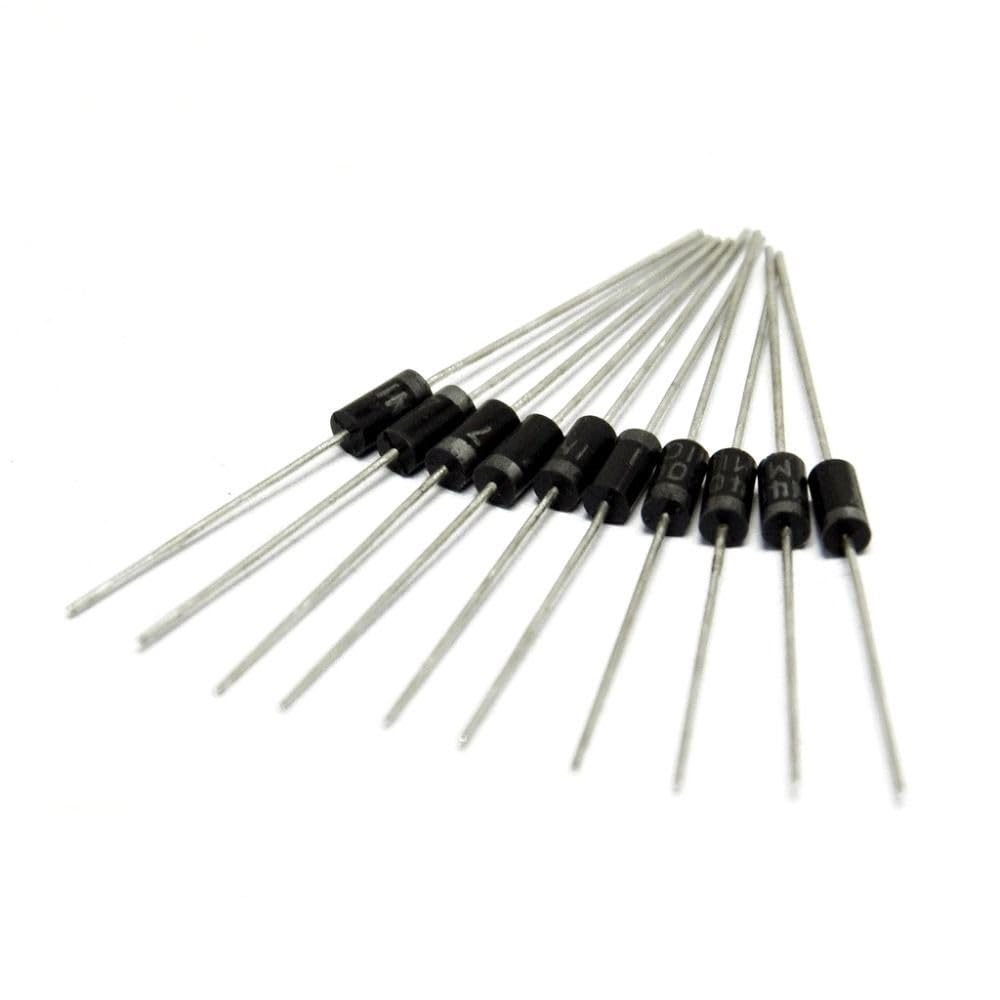

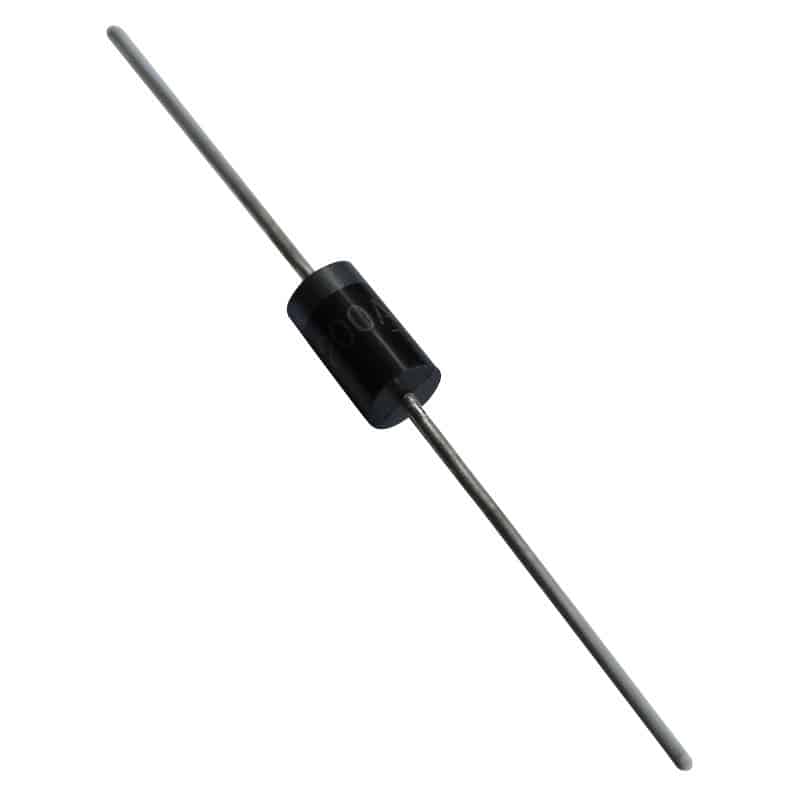

Fast Recovery Diode FR207 (2A / 1000V) – High-Voltage Rectifier for High-Speed Switching Applications

The FR207 Fast Recovery Diode (2A / 1000V) is a high-performance rectifier diode designed for applications that require fast switching speed, high reverse voltage capability, and reliable current handling. Compared to standard rectifier diodes, the FR207 features a short reverse recovery time, making it ideal for use in switch-mode power supplies (SMPS), inverters, converters, and high-frequency rectification circuits.

With a maximum average forward current of 2 amperes and a peak repetitive reverse voltage of 1000 volts, the FR207 diode provides excellent electrical performance and durability in demanding electronic environments. Its axial-lead package ensures easy installation and compatibility with through-hole PCB designs.

---

Fast Recovery Performance for High-Frequency Circuits

The defining feature of the FR207 diode is its fast reverse recovery time, which significantly reduces switching losses when compared to standard rectifier diodes such as the 1N540x series. This fast recovery behavior minimizes heat generation and improves overall system efficiency, especially in high-frequency switching applications.

Fast recovery diodes are essential in circuits where rapid switching occurs, as slow recovery diodes can cause excessive power loss, noise, and reduced efficiency.

Learn more about fast recovery diodes and their advantages:
https://www.electronics-notes.com/articles/electronic_components/diodes/fast-recovery-diodes.php

---

High Voltage Rating – 1000V Reverse Voltage

The FR207 is rated for a maximum repetitive reverse voltage (VRRM) of 1000V, making it suitable for high-voltage applications where reliable blocking capability is required. This high voltage tolerance ensures safe operation in circuits exposed to voltage spikes, transients, and high AC input levels.

High-voltage rectifier diodes like the FR207 are commonly used in:

• Offline SMPS circuits

• High-voltage power supplies

• Industrial control equipment

• Inverters and UPS systems

Understanding diode voltage ratings:
https://www.allaboutcircuits.com/textbook/semiconductors/chpt-3/diodes/

---

2A Average Forward Current Capability

With an average forward rectified current of 2A, the FR207 can handle moderate power levels while maintaining stable operation. This current rating makes it suitable for power supply rectification, DC output stages, and freewheeling diode applications.

The diode is designed to withstand short-duration surge currents, adding an extra layer of protection during power-up or abnormal operating conditions.

---

Low Forward Voltage Drop

The FR207 features a low forward voltage drop, which helps reduce power dissipation and improve energy efficiency. Lower conduction losses result in reduced heat generation, allowing for improved reliability and longer component life.

Efficient rectification is particularly important in compact designs where thermal management is limited.

---

Axial Lead Package for Easy Integration

The diode is supplied in a DO-15 axial lead package, which is widely used in through-hole PCB designs. This package offers:

• Simple manual or automated assembly

• Good mechanical strength

• Effective heat dissipation through leads

• Compatibility with existing designs and replacements

The axial form factor also makes the FR207 a popular choice for repair and maintenance of electronic equipment.

More about diode packaging types:
https://www.electronics-notes.com/articles/electronic_components/diodes/diode-packages.php

---

High Reliability and Thermal Stability

The FR207 is manufactured using high-quality silicon materials, ensuring consistent electrical performance and thermal stability over a wide operating temperature range. Its rugged construction allows it to operate reliably in environments subject to electrical noise, voltage fluctuations, and thermal stress.

The diode’s design helps maintain performance even under repetitive switching conditions, making it suitable for long-term continuous operation.

---

Common Applications

The Fast Recovery Diode FR207 (2A / 1000V) is widely used in:

• Switch-mode power supplies (SMPS)

• DC-DC converters

• Inverters and UPS systems

• Freewheeling and flyback circuits

• High-voltage rectifier stages

• Consumer electronics power boards

• Industrial power control circuits

• TV, monitor, and appliance power supplies

Its balance of speed, voltage handling, and current capability makes it a versatile component for both new designs and replacement applications.

---

Key Specifications Overview

• Diode type: Fast recovery rectifier diode

• Model: FR207

• Average forward current (IF): 2A

• Peak repetitive reverse voltage (VRRM): 1000V

• Reverse recovery time: Fast recovery

• Package type: DO-15 axial lead

• Mounting type: Through-hole

• Polarity: Unidirectional

---

Why Choose the FR207 Fast Recovery Diode?

The FR207 offers an excellent combination of fast switching performance, high voltage capability, and dependable current handling. It is a proven solution for designers and technicians who need efficient rectification in high-frequency or high-voltage environments. Its standardized package and reliable characteristics make it a trusted choice for both manufacturing and repair applications.
