ESP32, ESP32-C6 ESP32-C6 Microcontroller, WiFi 6 Development Board, 160MHz Single-core Processor, ESP32-C6-MINI-1 Module

WaveShare ESP32-C6 Pico Mini development board

1,500.00 EGP

The ESP32-C6 is Espressif’s groundbreaking WiFi 6 (802.11ax) + Bluetooth 5.0 LE development board, featuring a 160MHz RISC-V single-core processor and ESP32-C6-MINI-1 module. Designed for high-efficiency IoT applications, this board delivers superior wireless performance, ultra-low power consumption, and robust security—perfect for smart homes, industrial automation, and next-gen wireless projects.

SKU: WN-7358 Category: UNI-T

Description
Reviews (0)

Description

WaveShare ESP32-C6 Pico Mini development board

🌟 Key Features

✅ WiFi 6 (802.11ax) + Bluetooth 5.0 LE

WiFi 6 – Higher speeds, lower latency, better multi-device performance
Bluetooth 5.0 LE – Low-power wireless for IoT sensors & wearables

✅ High-Efficiency RISC-V Processor

160MHz 32-bit single-core RISC-V CPU – Optimized for IoT workloads
320KB SRAM + 8MB Flash (ESP32-C6-MINI-1 module) – Ample storage for firmware

✅ Rich Peripheral Support

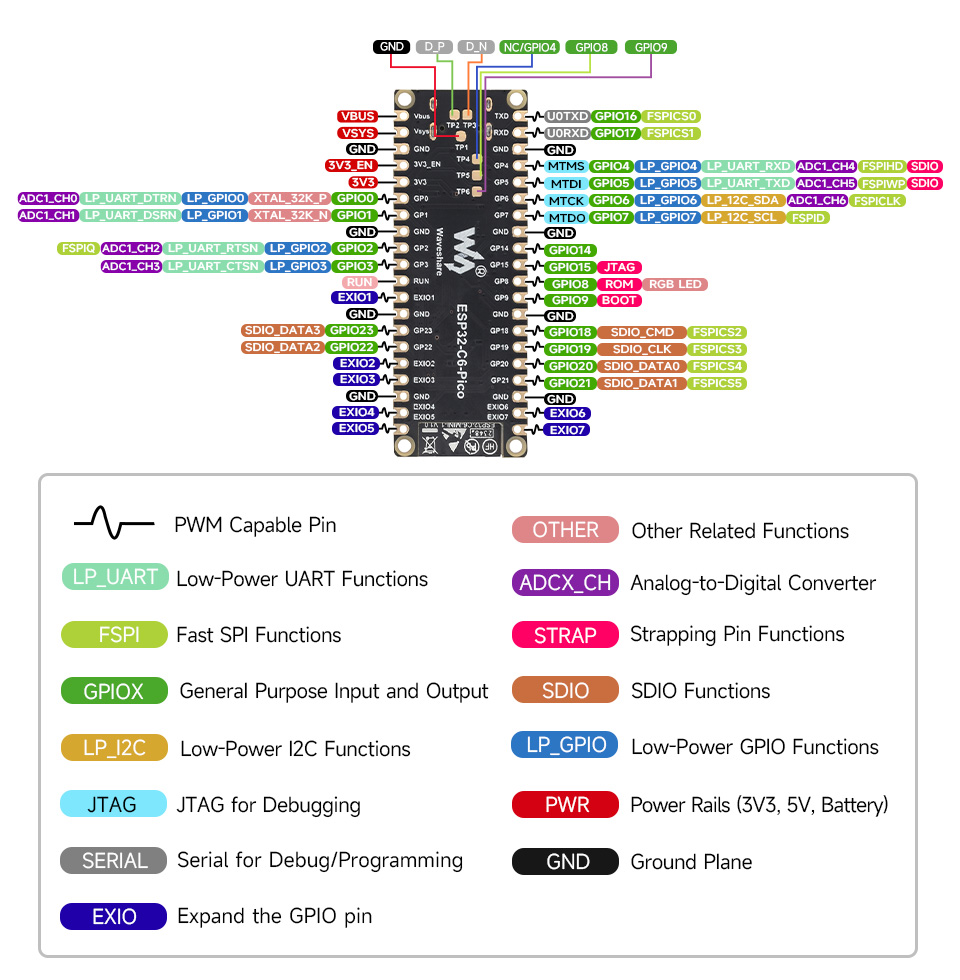

30+ GPIOs (UART, SPI, I2C, PWM, ADC, DAC, USB OTG)
USB Type-C – For programming & power (5V)
Built-in RGB LED – Debugging & status indication

✅ Ultra-Low Power & Security

Deep sleep mode (µA current) – Ideal for battery-powered devices
Secure Boot & Flash Encryption – Enterprise-grade security

✅ Developer-Friendly Ecosystem

Arduino IDE, ESP-IDF, MicroPython, and Rust support
Plug-and-play USB programming (no debugger needed)

📊 Technical Specifications

Parameter	Specification
MCU	ESP32-C6 (RISC-V @ 160MHz)
Wireless	WiFi 6 (802.11ax) + BT 5.0 LE
Memory	320KB SRAM + 8MB Flash
GPIO	30+ (multifunctional)
USB	Type-C (OTG support)
Antenna	PCB antenna (2.4GHz)

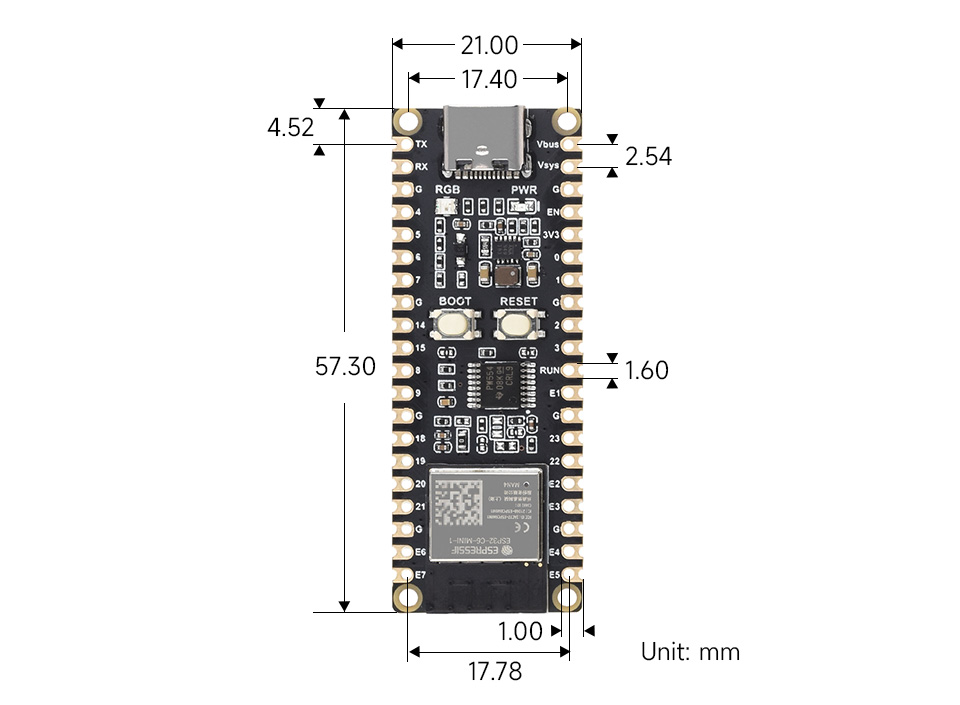

Dimensions	~25mm × 18mm

📦 Package Includes

1x ESP32-C6 Development Board (ESP32-C6-MINI-1 module)
Optional headers (if selected)

💡 Why Choose ESP32-C6?

🔹 WiFi 6 support – Future-proof for high-density IoT networks
🔹 RISC-V efficiency – Better performance per watt than ARM Cortex-M
🔹 More GPIOs than ESP32-S3 – Greater expandability
🔹 Type-C convenience – Modern connectivity

🚀 Ideal Applications

✔ Next-gen smart home hubs
✔ Industrial wireless sensors
✔ AIoT edge computing
✔ High-efficiency gateways
✔ Prototyping next-gen wireless tech
