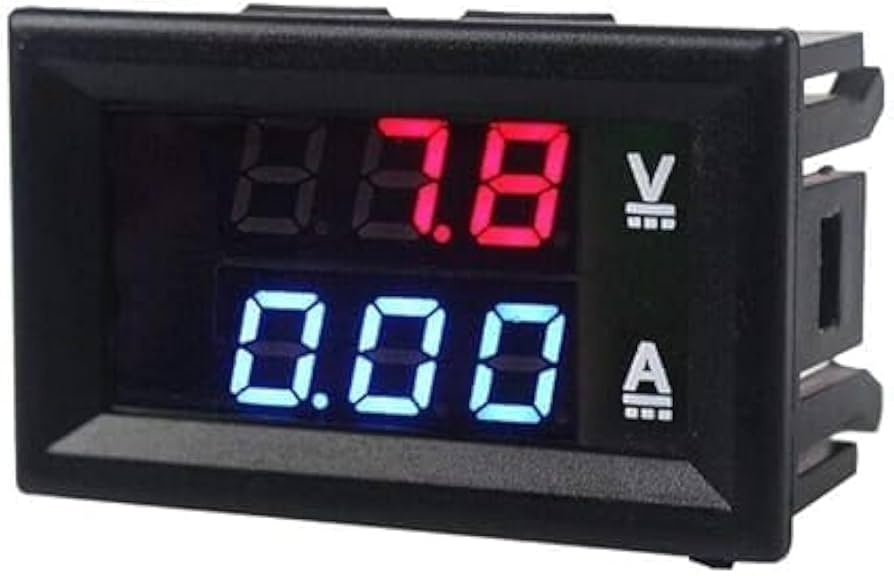

DC 0–100V 10A Digital Voltmeter & Ammeter – Dual Display

The DC 0–100V 10A Digital Voltmeter and Ammeter with Dual Display is a versatile and precise measurement tool designed for monitoring voltage and current simultaneously in DC circuits. This compact device is widely used in battery management, power supply monitoring, solar energy systems, electric vehicles, and DIY electronics projects. Featuring clear digital displays for both voltage and current, it allows users to monitor circuit parameters in real time, ensuring safety and efficiency.

Its dual display design provides instant visual feedback without the need for multiple instruments. Whether you are a hobbyist, professional engineer, or student, this device is an essential tool for measuring DC voltage and current accurately in various applications.

Key Features of DC 0–100V 10A Digital Voltmeter & Ammeter

• Voltage Range: Measures DC voltage from 0 to 100V.

• Current Range: Measures DC current up to 10A.

• Dual Digital Display: Simultaneously shows voltage (V) and current (A) readings.

• High Accuracy: Provides precise measurements for reliable monitoring.

• Wide Applications: Ideal for battery systems, solar panels, electric vehicles, and lab setups.

• Easy to Install: Compact panel-mount design with simple wiring.

• LED Backlit Display: Clear, easy-to-read display for indoor and low-light environments.

• Low Power Consumption: Efficient design suitable for continuous operation.

• Durable Build: High-quality components for long-term reliability.

Technical Specifications

• Measurement Voltage Range: 0–100V DC

• Measurement Current Range: 0–10A DC

• Display Type: Dual LED display for voltage and current

• Resolution: 0.1V / 0.01A

• Power Supply: Powered by the measured circuit or separate 5–30V DC supply

• Accuracy: ±1%

• Operating Temperature: -10°C to 60°C

• Dimensions: Compact panel-mount module, easy to integrate into projects

• Protection Features: Reverse polarity protection and over-current indication

Why Choose This Digital Voltmeter & Ammeter?

1. Simultaneous Voltage and Current Measurement – Dual display ensures real-time monitoring without additional instruments.

2. High Precision and Reliability – Provides accurate readings for DC systems up to 100V and 10A.

3. Versatile Applications – Ideal for battery packs, power supplies, solar energy systems, electric vehicles, and DIY electronics.

4. Easy to Install and Use – Compact panel design and straightforward wiring allow quick integration into any project.

5. Enhanced Safety – Monitors current and voltage to prevent overloads and potential damage to electronics.

Applications of DC 0–100V 10A Digital Voltmeter & Ammeter

• Battery Monitoring: Track voltage and current in rechargeable battery packs.

• Solar Energy Systems: Monitor photovoltaic panel output for voltage and current efficiency.

• Electric Vehicles: Keep track of battery performance and motor current.

• Power Supply Testing: Measure output voltage and current of DC power supplies.

• DIY Electronics Projects: Use in Arduino, Raspberry Pi, or microcontroller-based setups for real-time monitoring.

• Industrial Equipment: Ensure safe and precise operation of DC-powered machines.

How to Use the DC 0–100V 10A Digital Voltmeter & Ammeter

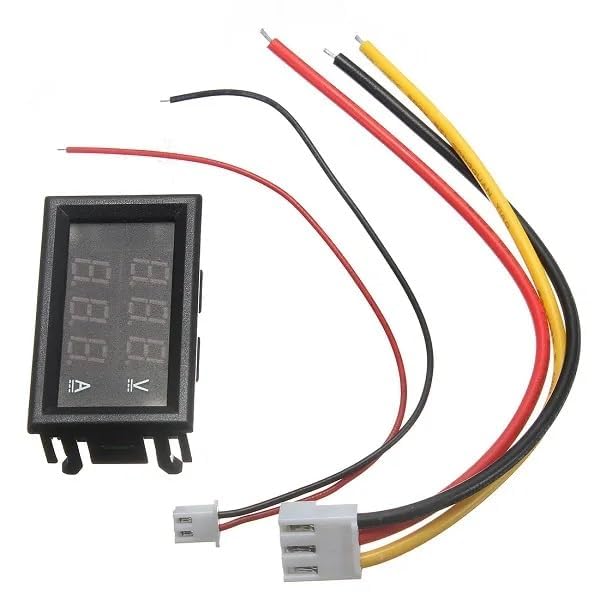

1. Connect the Device – Wire the voltmeter and ammeter in parallel for voltage measurement and in series for current measurement with the DC load.

2. Power the Device – Use the supplied voltage from the circuit or an external 5–30V DC source.

3. Read Measurements – Observe the dual LED display to monitor voltage and current in real time.

4. Integrate Into Projects – Combine with battery packs, solar panels, or DC motors for precise monitoring.

5. Ensure Safety – Verify wiring and polarity to prevent damage or inaccurate readings.

This simple process allows hobbyists, engineers, and educators to monitor DC circuits efficiently and safely.

Package Includes

• 1 × DC 0–100V 10A Digital Voltmeter & Ammeter – Dual Display

Conclusion

The DC 0–100V 10A Digital Voltmeter and Ammeter with Dual Display is a versatile, reliable, and precise tool for anyone working with DC circuits. Its dual display, wide measurement range, and high accuracy make it ideal for battery management, solar power monitoring, electric vehicles, and electronics projects.

Whether you are a professional engineer, student, or electronics hobbyist, this module ensures safe, real-time monitoring of voltage and current, helping to protect devices and optimize system performance.
