Description





Key Features:

• Multi-Interface Support: USB to UART, SPI, and I²C communication.

• High-Speed Data Transfer: Supports USB 2.0 high-speed mode for fast communication.

• USB Type-C Connector: Modern, reversible, and durable interface for power and data.

• Stable and Reliable: Low latency and high stability for professional use.

• Easy Integration: Compatible with Windows, Linux, and macOS with appropriate drivers.

• Versatile Development Tool: Ideal for embedded systems development, device programming, and communication testing.

---

Specifications:

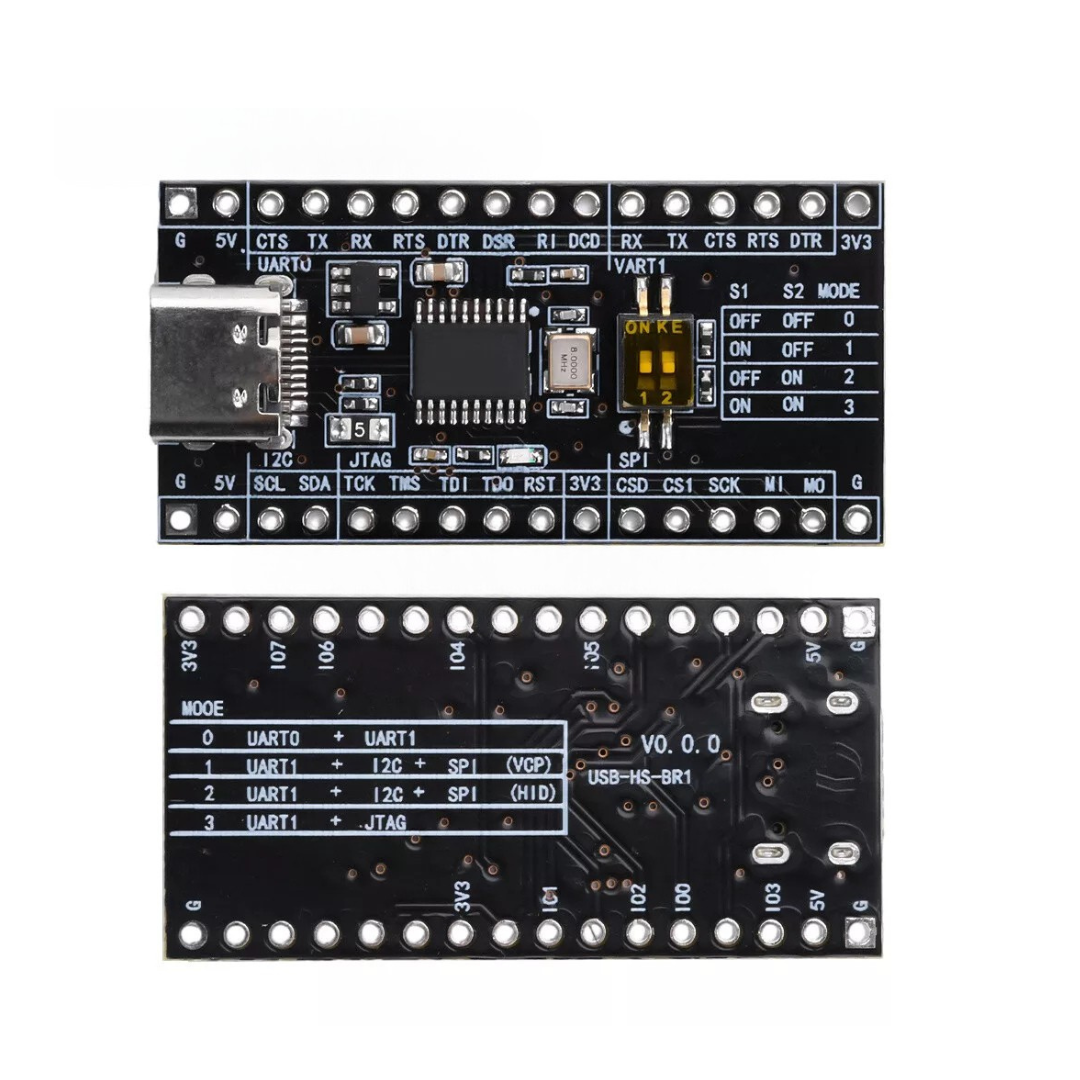

• Chipset: CH347

• USB Standard: USB 2.0 (High-Speed, up to 480 Mbps)

• Supported Protocols: UART, SPI, I²C

• UART Baud Rate: Up to 6 Mbps

• Input Voltage: 5V via USB Type-C

• Connector: USB Type-C

• Operating Systems: Windows / Linux / macOS

• Board Version: v0.0.0

• Dimensions: Compact PCB design for portability and easy use

---

Applications:

• USB-to-serial communication with microcontrollers

• Firmware flashing and debugging

• Sensor data acquisition via I²C or SPI

• Embedded system prototyping

• PC-to-embedded board communication

---

Package Includes:

• 1 × CH347 Development Board (Type-C)
