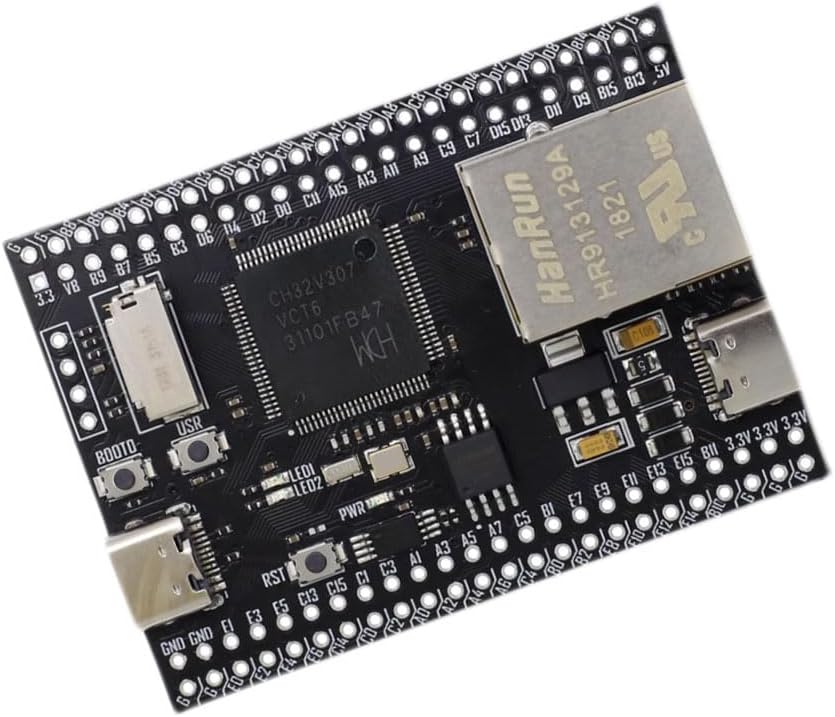

CH32V307VCT6 core board microcontroller development board 32-bit RISCV controller
650.00 EGP
The CH32V307VCT6 Core Board is a high-performance 32-bit RISC-V microcontroller development board based on the WCH CH32V307VCT6 chip. It features a 144MHz main frequency, rich peripherals, and hardware FPU, making it ideal for industrial control, IoT, and embedded applications. With built-in support for RT-Thread OS, it provides a smooth development experience for real-time operating systems.
Description
Key Features
✔ High-Performance RISC-V Core – 144MHz CH32V307VCT6 MCU (WCH QingKe V4F)
✔ Hardware FPU & DSP Support – Accelerates floating-point and signal processing
✔ Rich Memory Resources – 256KB Flash + 64KB SRAM (expandable via external memory)
✔ Multiple Communication Interfaces –
-
USB 2.0 Full-Speed OTG
-
Dual CAN 2.0B
-
4x UART, 2x I2C, 3x SPI, 1x SDIO
-
Ethernet MAC (10/100M)
✔ RT-Thread OS Support – Pre-installed RTOS for real-time embedded development
✔ Arduino-Compatible Pins – Easy expansion with shields & modules
✔ JTAG/SWD Debugging – Supports OpenOCD & WCH-Link for easy programming
✔ Wide Power Supply (2.5V–5.5V) – Suitable for battery-powered applications
Applications
-
Industrial Automation & Control
-
IoT & Smart Home Devices
-
Motor Control & Robotics
-
Data Acquisition & Sensor Hubs
-
Embedded Networking (Ethernet, CAN, USB)
Technical Specifications
| Parameter | Details |
|---|---|
| MCU Model | CH32V307VCT6 (WCH QingKe V4F) |
| Architecture | 32-bit RISC-V (RV32IMAC + FPU) |
| Max Frequency | 144MHz |
| Flash Memory | 256KB |
| SRAM | 64KB |
| GPIO Pins | Up to 80 (5V-tolerant) |
| USB | 1x USB 2.0 Full-Speed OTG |
| CAN | 2x CAN 2.0B |
| Ethernet | 10/100M MAC |
| ADC | 12-bit, 16 channels |
| Timers | Advanced/PWM/Basic timers |
| Debug Interface | JTAG/SWD (WCH-Link compatible) |
| Operating Voltage | 2.5V – 5.5V |
Development Support
-
RT-Thread OS (Built-in BSP support)
-
Arduino-Compatible (With adapter shields)
-
WCH Official IDE (MounRiver Studio)
-
OpenOCD & PlatformIO Support
-
Rich Example Codes (GPIO, USB, CAN, Ethernet, etc.)
Package Includes
-
1x CH32V307VCT6 Core Board
-
(Optional) WCH-Link Debugger
-
Pin headers (if selected)
Why Choose This Board?
✅ High-Speed RISC-V Core – Faster than many ARM Cortex-M0/M3 MCUs
✅ RT-Thread & Arduino Support – Flexible development options
✅ Industrial-Grade Peripherals – CAN, Ethernet, USB OTG for advanced projects
✅ Low-Cost & Open Ecosystem – Great alternative to STM32
