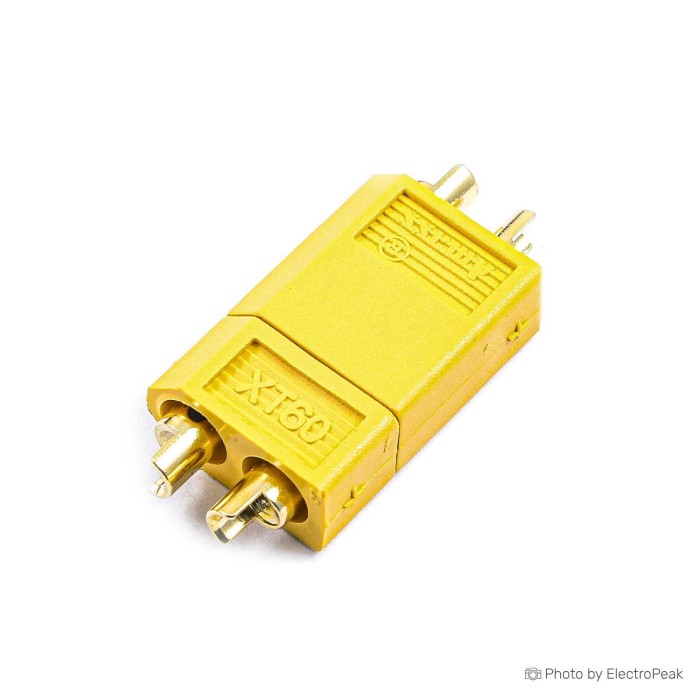

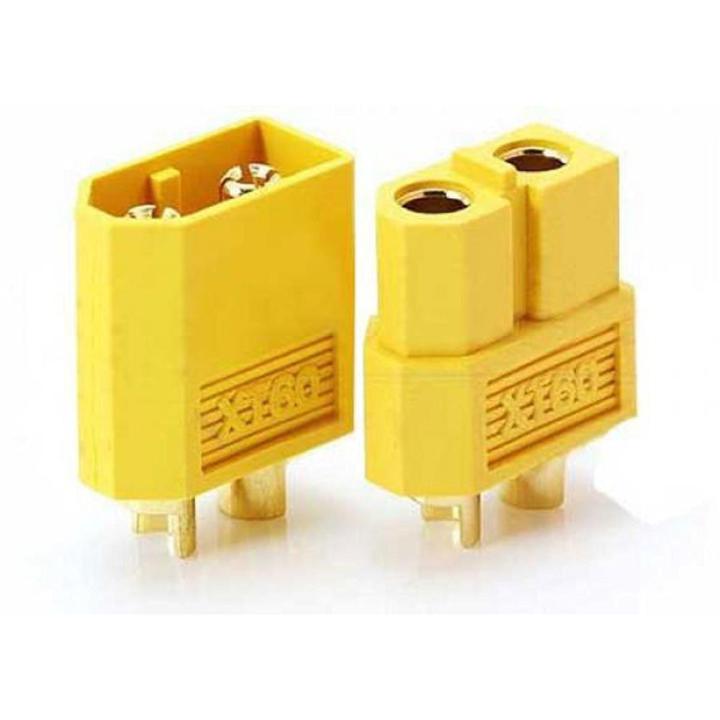

Battery Connector XT60 (Male + Female) – Reliable Power Connector for RC, Drones & Electronics

The XT60 Battery Connector (Male + Female pair) is one of the most popular and widely used connectors in the RC (Radio Control) and electronics community. Designed for high-current applications, the XT60 provides a secure, stable, and efficient connection between batteries, ESCs (Electronic Speed Controllers), chargers, and other power-hungry devices.

Made from high-quality nylon material with gold-plated connectors, the XT60 is built to withstand high temperatures, frequent usage, and continuous current flow. Its compact design ensures easy installation while maintaining excellent electrical performance.

Whether you are flying drones, driving RC cars, building robotics projects, or working on DIY electronics, the XT60 connector set (male + female) guarantees reliable performance, safety, and long service life.

Key Features

🔌 Secure Connection: Firm fit between male and female connectors prevents accidental disconnection.
⚡ High Current Capacity: Supports continuous current up to 60A and peak currents up to 100A.
🔥 Heat-Resistant Nylon Material: Withstands high operating temperatures without deformation.
💡 Gold-Plated Contacts: Ensures low resistance, high conductivity, and long-lasting performance.
🔧 Easy Soldering Design: Large contact area simplifies wire soldering for hobbyists and professionals.
🛠️ Universal Compatibility: Works with LiPo, Li-ion, NiMH, and other rechargeable battery packs.

Technical Specifications

• Connector Type: XT60 (Male + Female pair)

• Material: High-temperature nylon housing with gold-plated copper contacts

• Current Rating: Continuous 60A, peak up to 100A

• Voltage Rating: Up to 500V DC (depending on application)

• Resistance: < 0.002Ω

• Operating Temperature: -20°C to +120°C

• Wire Compatibility: Up to 12 AWG silicone wires

• Applications: Drones, RC cars, airplanes, helicopters, robotics, power systems, and DIY electronics

Why Choose XT60 Connectors?

The XT60 battery connector is the industry standard for hobby electronics and RC projects. Unlike low-quality connectors, the XT60 provides tight and stable connections that won’t loosen under vibration – a critical factor in drones, quadcopters, and RC vehicles.

Its heat-resistant nylon material ensures durability, while the gold-plated contacts minimize energy loss, delivering efficient power transfer. The design also prevents reverse polarity, reducing the risk of short circuits and electrical failures.

If you’re working with LiPo batteries, the XT60 is considered one of the safest and most reliable connectors available, trusted by professionals and hobbyists worldwide.

Applications

The XT60 male + female connector set can be used in a wide variety of projects, including:

• 🚁 Drones & Quadcopters – Stable connections for flight controllers, motors, and ESCs.

• 🚗 RC Cars & Trucks – High-current delivery for racing and off-road performance.

• ✈️ RC Planes & Helicopters – Reliable power for propulsion and servos.

• 🤖 Robotics Projects – Safe and efficient connections for power distribution.

• 🔋 Battery Chargers & Power Supplies – Secure interface between LiPo batteries and chargers.

• 🛠️ DIY Electronics & Makers Projects – Ideal for any custom power system requiring high current.

Benefits for Users

• Enhanced Safety: Prevents loose connections that may cause overheating or fire.

• Long Lifespan: High-quality materials extend usability even under frequent use.

• Low Resistance: Maximizes energy efficiency for longer run times and stable performance.

• Compact & Lightweight: Fits easily in tight spaces without adding unnecessary weight.

• Easy to Install: Designed for smooth soldering and quick integration into projects.

Installation Tips

1. Use Proper Soldering Tools: Apply high-quality solder and a powerful soldering iron (60W+ recommended).

2. Polarity Check: Always ensure correct polarity before soldering to avoid short circuits.

3. Heat Shrink Tubing: Use heat shrink over soldered joints for insulation and durability.

4. Wire Gauge: For high-current applications, use thick silicone wires (12–14 AWG).

Conclusion

The XT60 Battery Connector (Male + Female) is the perfect solution for anyone looking for a safe, durable, and efficient power connection in RC, drone, robotics, and DIY electronics projects. With its 60A continuous current capacity, gold-plated contacts, and heat-resistant nylon housing, it ensures reliable performance in even the most demanding conditions.

Whether you are a beginner hobbyist or an advanced developer, adding the XT60 connectors to your setup means better safety, higher efficiency, and peace of mind for all your battery-powered projects.

Upgrade your power system today with the trusted XT60 male + female connector set—a standard choice for makers worldwide.
