Attiny85 Arduino Micro Development Board

240.00 EGP

SKU: DB-26616 Category: Tags: ,

Description

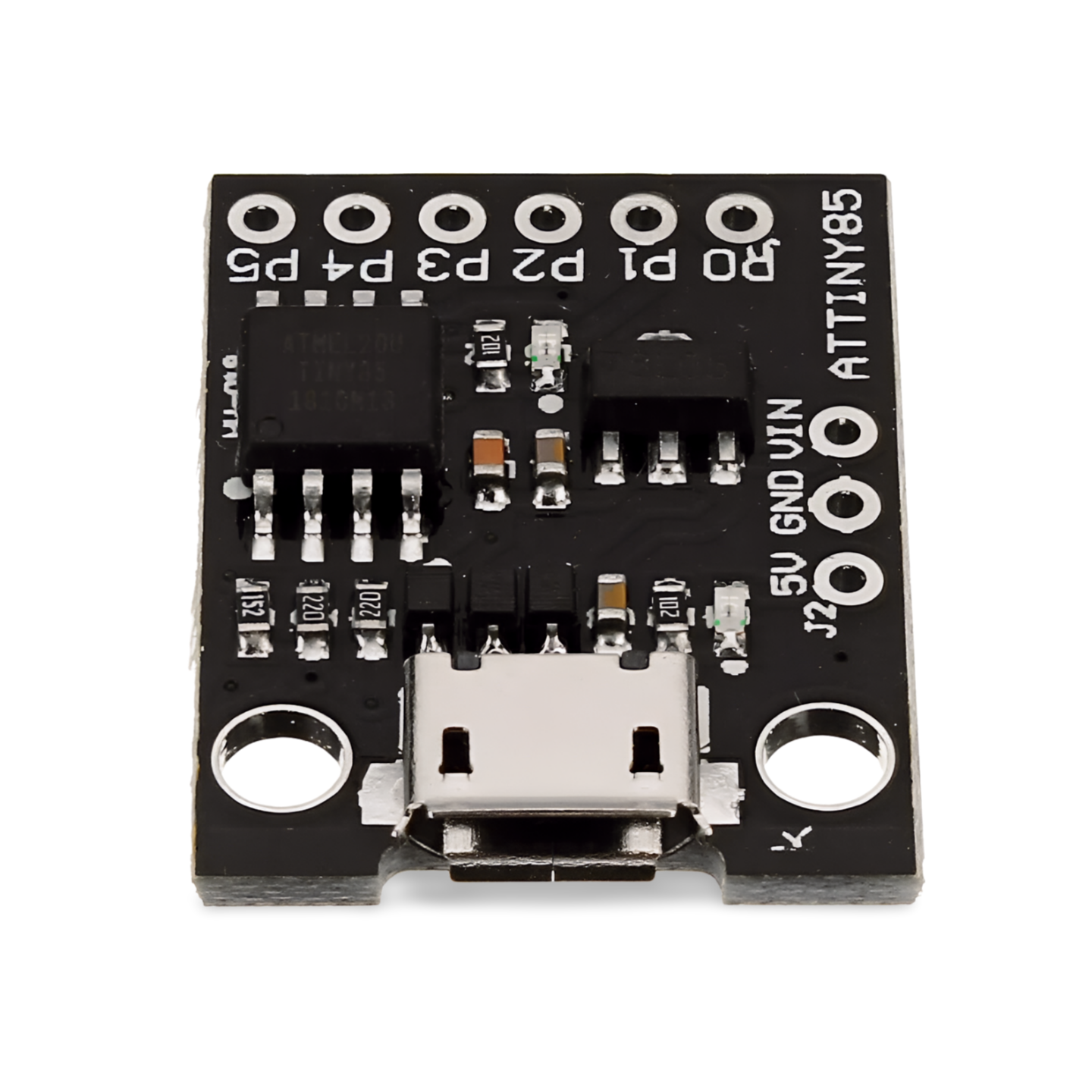

Attiny85 Arduino Micro Development Board

The ATtiny85 based mini development board is similar to the Arduino, but cheaper and smaller (of course a bit less powerful). Through the whole host of shields to extend its functionality and the ability to use the familiar Arduino IDE, this board is a great way to jump into microcontroller electronics.

Microcontroller: ATtiny85
Operating Voltage: 5 V
Input Voltage: 5 – 12 V
Digital I/O Pins: 6 (of which 2 are used for USB)
PWM Pins: 3
Analog Input Pins: 4
DC Current per I/O Pin: 40 mA
Flash Memory: 8 KB (of which about 2 KB are used by bootloader)
LEDs 2, Power and Status LEDs
Dimensions: 21 mm x 14 mm



Features:

  • Support for the Arduino IDE 1.0 (OSX/Win/Linux).
  • 8KB program memory (~2KB is used by bootloader)
  • 512 byte EEPROM
  • 512 byte SRAM
  • Internal USB support
  • 6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)
  • PWM on 3 pins (more possible with Software PWM)
  • ADC on 4 pins
  • I2C and SPI (via USI)
  • Power LED and Test/Status LED
  • Power via USB or External Source – 5v or 7-16v (automatic selection)
  • On-board 150ma 5V Regulator
  • Low-power consumption

For more information, Click on How to test it?

Attiny85 Arduino Micro Development Board
Attiny85 Arduino Micro Development Board

 Package Included:

  • 1 X Attiny85 Arduino Micro Development Board
  • 1 X PIN Header
