Arduino Nano CH340 Chip Without Cable
250.00 EGP

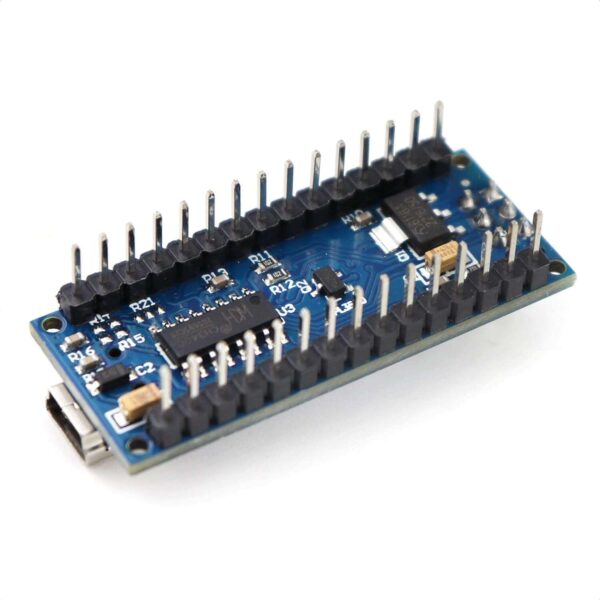

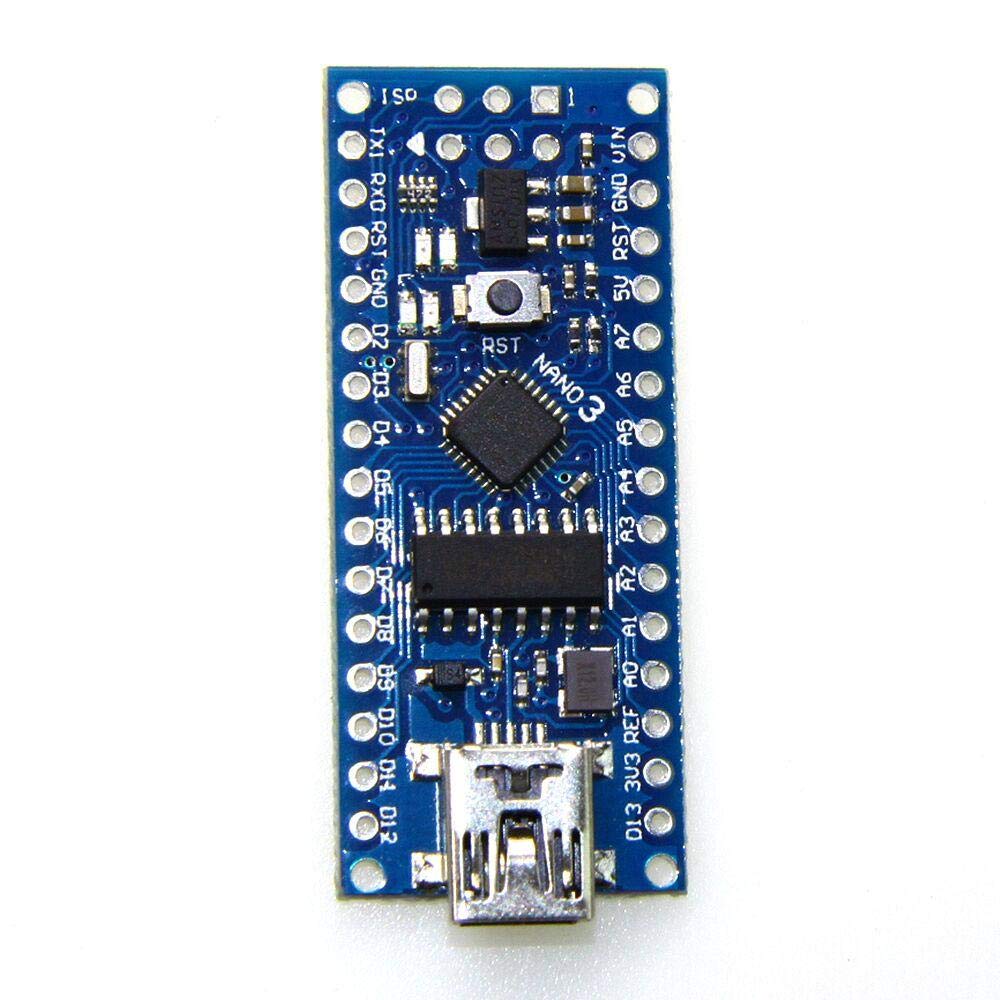

The Arduino Nano V3.0 CH340 is a compact, breadboard-friendly microcontroller board based on the ATmega328P. It’s a smaller version of the UNO with nearly identical functionality, perfect for space-constrained projects. This clone version uses the CH340 USB-to-Serial converter, making it more affordable without compromising performance.
Description
Key Features:
✔ CH340 USB-to-Serial Chip – Reliable connectivity for programming (requires separate USB cable).
✔ ATmega328P MCU – Same 8-bit AVR processor as Uno (16MHz, 32KB flash, 2KB SRAM, 1KB EEPROM).
✔ Compact Design – Just 18x45mm – perfect for permanent installations.

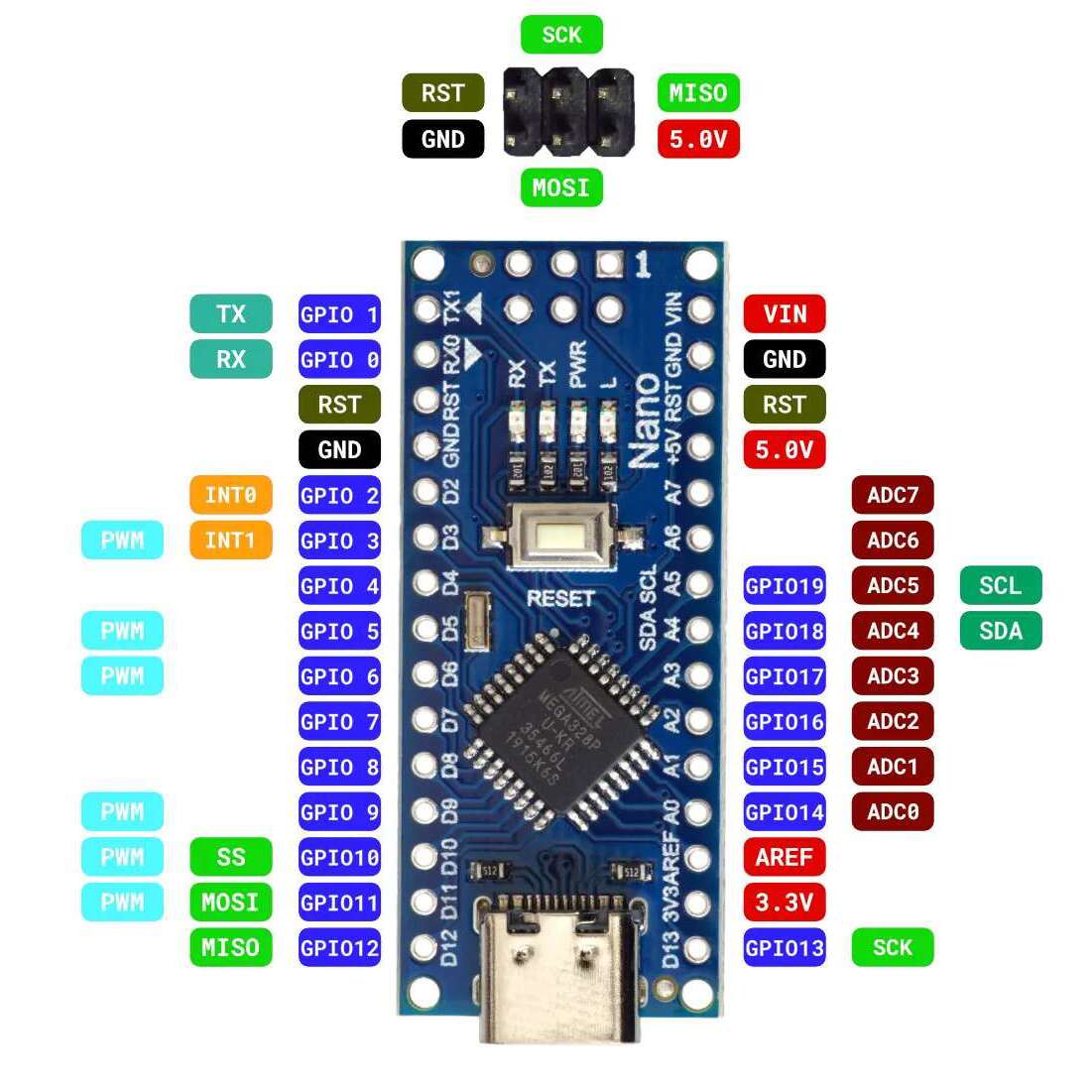

✔ Full GPIO Access – 22 digital I/O (6 PWM), 8 analog inputs.
✔ 5V Logic – Works natively with 5V sensors/shields.
✔ Flexible Power – 7-12V via VIN or 5V via USB.
Specifications:
-
Microcontroller: ATmega328P
-
USB Interface: CH340G
-
Clock Speed: 16MHz
-
Memory: 32KB flash / 2KB SRAM
-
I/O: 14 digital (6 PWM), 8 analog
-
Power: 7-12V DC or 5V USB
-
Dimensions: 18 x 45mm
Package Includes:
-
1x Arduino Nano (CH340) board
-
USB cable not included
Applications:
-
Wearable electronics
-
Drone flight controllers
-
Compact sensor nodes
-
DIY MIDI controllers
🔌 Pro Tip: Requires Micro-USB cable (sold separately) and CH340 drivers (downloadable).
