Arduino Mega 2560 China R3

1,500.00 EGP

The Arduino Mega 2560 R3 (CH340) is a powerful and cost-effective microcontroller board based on the ATmega2560 chip. It is a popular choice for advanced projects that require more I/O pins, memory, and communication options than standard boards like the Uno. This is a Chinese clone version that uses the CH340 USB-to-Serial chip instead of the original Atmega16U2, making it more affordable without sacrificing core functionality.

-+
SKU: DB-22590 Category: Tags: ,

Description

Arduino Mega 2560 China R3

📦 Specifications:

  • Microcontroller: ATmega2560

  • Operating Voltage: 5V

  • Input Voltage (recommended): 7-12V

  • Input Voltage (limits): 6-20V

  • Digital I/O Pins: 54 (of which 15 provide PWM output)

  • Analog Input Pins: 16

  • DC Current per I/O Pin: 20 mA

  • DC Current for 3.3V Pin: 50 mA

  • Flash Memory: 256 KB (of which 8 KB used by bootloader)

  • SRAM: 8 KB

  • EEPROM: 4 KB

  • Clock Speed: 16 MHz

  • USB Interface: CH340G (USB-to-Serial chip)

  • USB Connector: Type-B

  • Board Dimensions: 101.5 mm x 53.3 mm

  • Weight: Approx. 37g

🔌 Connectivity:

  • 4 x UARTs (Hardware Serial Ports)

  • I2C and SPI Communication Supported

  • USB connection for programming and serial monitoring

  • ICSP header for programming with external programmer

🧰 Features:

  • Fully compatible with Arduino IDE

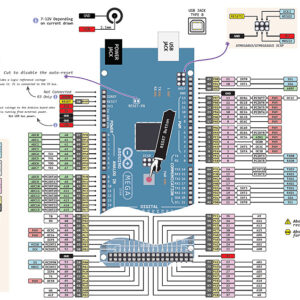

  • Same layout and pinout as the official Arduino Mega 2560 R3

  • Ideal for 3D printing, robotics, home automation, and large sensor projects

  • Onboard voltage regulator for stable operation

  • CH340 driver needed for USB communication (available for Windows, macOS, and Linux)

📎 Note:

  • Before using this board, you need to install the CH340 driver on your computer to ensure proper USB communication.
