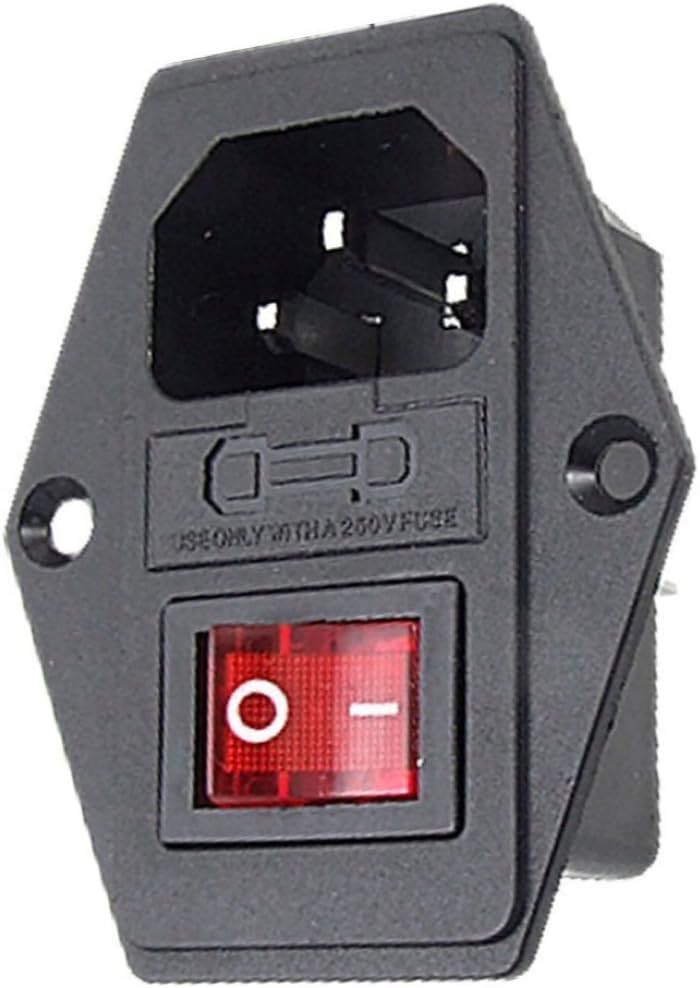

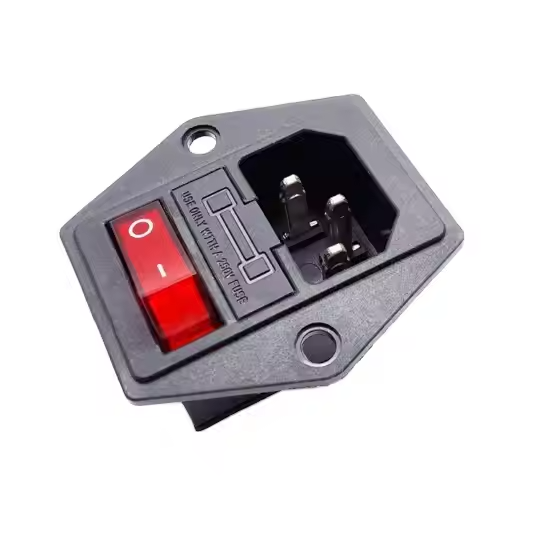

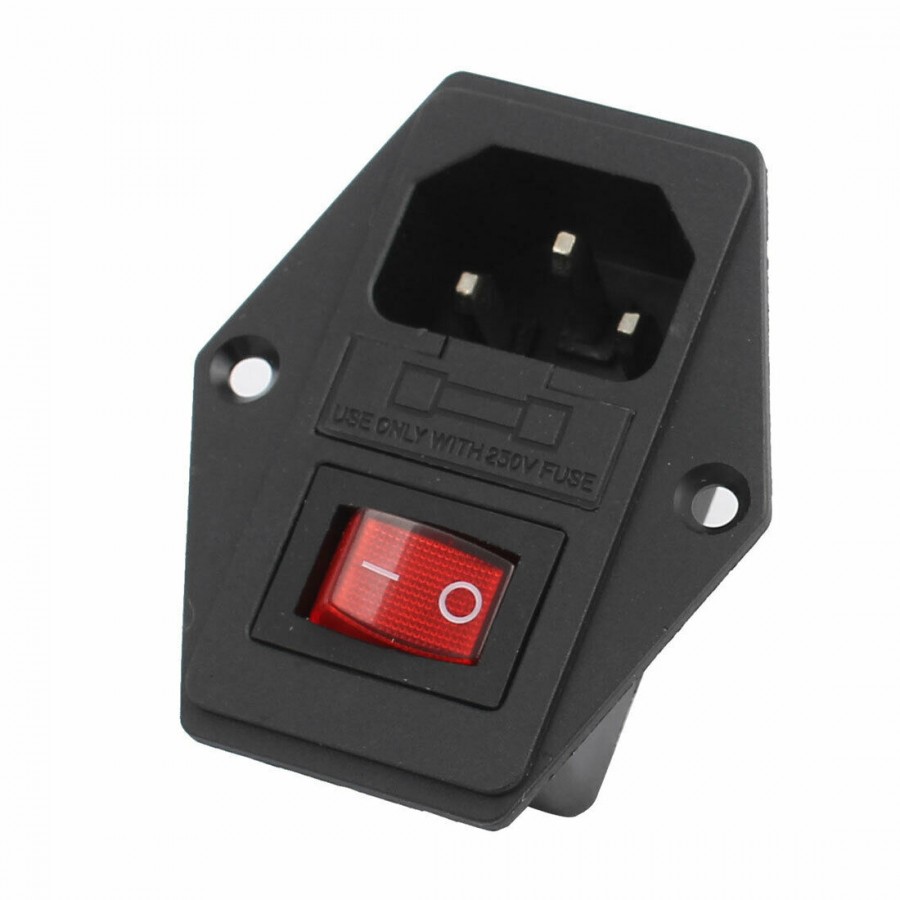

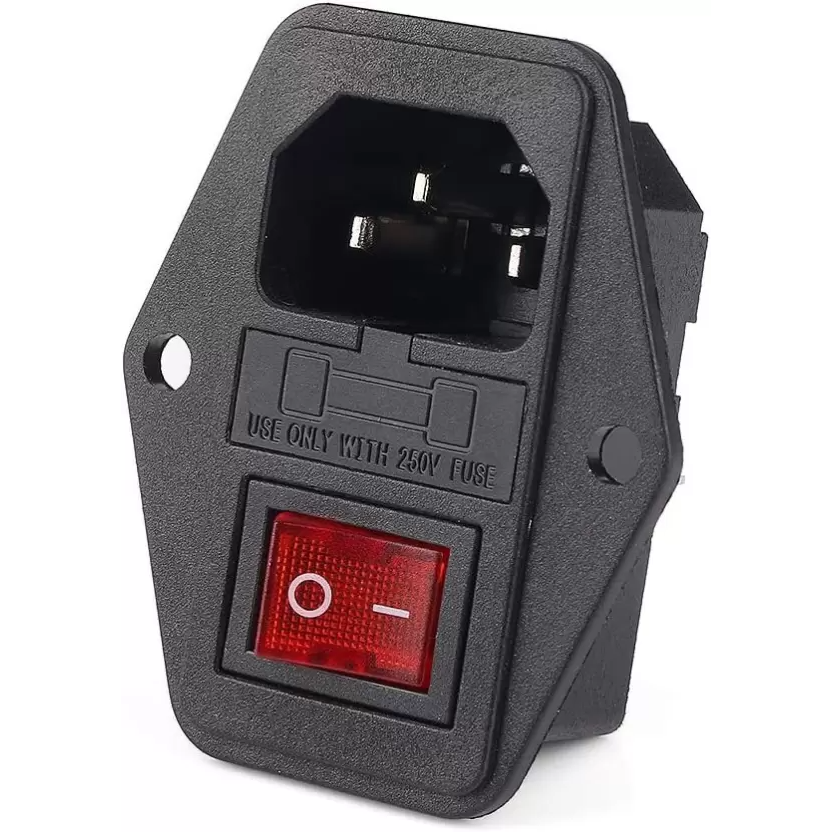

AC Power Connector With On/Off Switch and Fuse Compartment
35.00 EGP
This AC Power Connector Module integrates an on/off switch and fuse protection in a compact, durable housing. Designed for DIY electronics, amplifiers, and lab equipment, it provides safe 110V–240V AC power switching with easy-to-replace fuse protection against overloads.
Description
-
Key Features:
✔ IEC C14 Inlet – Standard 3-prong AC socket (fits most power cords).
✔ Built-In Rocker Switch – On/Off power control (10A/250V rating).
✔ Fuse Compartment – Holds 5×20mm glass/ceramic fuses (user-replaceable).
✔ Universal Voltage – Supports 110V–240V AC (fuse rating depends on load).
✔ Metal/High-Temp Housing – Flame-retardant ABS or metal casing (varies by model).
✔ Easy Wiring Terminals – Screw terminals for Live (L), Neutral (N), and Ground (G).
✔ Panel-Mountable – Fits standard 21×15mm cutouts (mounting nut included).
Applications:
-
Amplifiers & Audio Gear – Safe power switching for tube amps, mixers.
-
3D Printers/Lasers – Adds a fused main switch to CNC machines.
-
Lab & Test Equipment – Benchtop power control for prototypes.
-
Server/PC Projects – DIY PSU enclosures with fuse protection.
Wiring Guide:
-
Connect AC Cable –
-
Live (L) → Switch terminal → Fuse → Device
-
Neutral (N) → Direct to device
-
Ground (G) → Chassis/device ground
-
-
Insert Fuse – Match current rating to your load (e.g., 2A, 5A, 10A).
-
Mount on Enclosure – Secure with included nut.
Safety Notes:
⚠ High Voltage Warning – Only for qualified users; ensure proper insulation.
⚠ Fuse Selection – Use fast-blow fuses at slightly above max load current.
Why Choose This Module?
✅ All-in-One Safety – Combines switch + fuse + IEC inlet in one unit.
✅ Universal Compatibility – Works with global AC voltages.
✅ No Splicing Wires – Screw terminals simplify installation.Ideal for safe, professional power management—order yours today!
-
