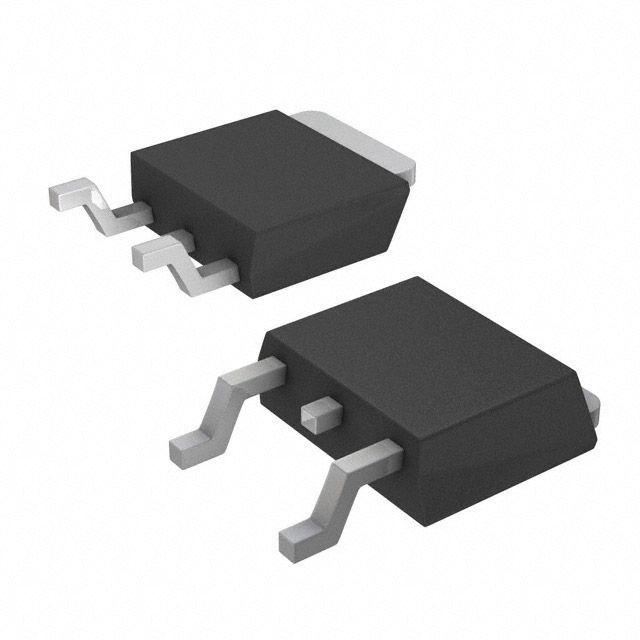

7805 SMD Voltage Regulator – Fixed 5V DC Linear Regulator for Compact Power Applications

The 7805 SMD Voltage Regulator is a compact, surface-mount version of the popular 7805 linear voltage regulator series. It provides a stable 5V DC output from a higher DC input voltage and is widely used in embedded systems, Arduino projects, electronic circuit boards, and power supply designs. Known for its simplicity, reliability, and built-in protection features, the 7805 SMD remains one of the most trusted components for low-power voltage regulation.

Overview

The 7805 SMD (Surface Mount Device) is designed to deliver a regulated 5V output from an input voltage typically between 7V and 35V. It’s ideal for applications requiring a constant 5V power supply, such as microcontrollers, logic ICs, sensors, and communication modules. The compact SMD package allows for efficient use of PCB space, making it suitable for modern electronic devices and miniaturized circuit layouts.

As a linear voltage regulator, the 7805 SMD ensures a smooth and noise-free DC output, making it especially suitable for analog and digital circuits that require stable power with minimal ripple. The device also includes built-in thermal shutdown and short-circuit protection to prevent damage under overload conditions, ensuring reliable long-term operation.

Key Features

• ⚙️ Fixed +5V DC Output: Provides a stable 5V regulated voltage for powering digital and analog circuits.

• 🧩 SMD Package: Space-saving surface-mount design for modern PCB layouts and compact electronic devices.

• 🔋 Wide Input Voltage Range: Operates efficiently with input voltages from 7V up to 35V DC.

• 🔒 Built-in Protections: Includes short-circuit and thermal overload protection for added reliability.

• ⚡ Low Noise & Ripple: Ensures smooth, consistent voltage suitable for sensitive electronic components.

• 🔧 Easy Integration: Simple to use — requires only input and output capacitors for stable performance.

• 🔥 High Temperature Stability: Maintains consistent performance across a wide temperature range.

Technical Specifications

---

Applications

The 7805 SMD Voltage Regulator is a versatile component suitable for countless electronic applications. It is commonly used in:

• ✅ Arduino & Microcontroller Circuits: Powering boards and external modules that require a stable 5V source.

• ✅ Embedded Systems: Providing regulated power to sensors, logic ICs, and communication interfaces.

• ✅ Industrial Control Boards: Used in automation circuits, PLC interfaces, and control modules.

• ✅ Consumer Electronics: Powering USB devices, displays, audio circuits, and low-power appliances.

• ✅ DIY & Educational Projects: Perfect for students and hobbyists designing compact power supplies.

• ✅ Battery-Powered Systems: Used in systems that convert 9V or 12V inputs into a reliable 5V output for logic components.

Advantages

Using the 7805 SMD Voltage Regulator provides several technical and practical benefits:

• 🔹 Compact Design: SMD format reduces board space and simplifies automated assembly.

• 🔹 Stable Output: Ensures consistent 5V even with fluctuating input voltages.

• 🔹 Low Cost & Easy to Use: Requires minimal external components, making circuit design straightforward.

• 🔹 Reliable Protection: Prevents damage to circuits due to overcurrent or overheating.

• 🔹 Noise Reduction: Excellent for powering analog sensors or microcontroller boards where clean voltage is essential.

How It Works

The 7805 SMD functions as a linear voltage regulator, meaning it continuously adjusts internal resistance to maintain a constant output voltage. When input voltage exceeds 5V by more than the dropout voltage (about 2V), the regulator dissipates excess energy as heat. For this reason, proper thermal management or heat dissipation should be considered in high-current applications.

Despite being a linear regulator, the 7805 SMD remains popular due to its simplicity, low component count, and noise-free output — advantages that are often difficult to achieve with switching regulators in sensitive analog circuits.

Installation Tips

• Use input and output capacitors (typically 0.33µF on input and 0.1µF on output) to improve stability and transient response.

• Ensure sufficient thermal dissipation if output current is near maximum load.

• Maintain a clean PCB layout to minimize interference and voltage drops.

• Avoid input voltages exceeding the rated maximum to prevent device failure.

Why Choose the 7805 SMD Regulator?

The 7805 SMD Voltage Regulator is a perfect blend of compact design, simplicity, and reliability. It delivers a clean, regulated 5V output ideal for powering logic circuits, sensors, and controllers in space-limited applications. Whether you’re designing an embedded device, upgrading an existing power supply, or creating a custom PCB, this regulator ensures stable performance and long-term durability.

Its SMD form factor makes it ideal for modern production techniques, and its proven electrical characteristics make it one of the most dependable regulators in electronics engineering.
