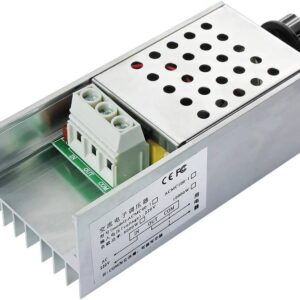

AC 110V 120V 220V 230V 10000W High Power SCR Motor Speed Controller Voltage Regulator Dimming Attemperation Thermoregulation Board

Description:

• Military level double circuit board design
• High-voltage condenser
• ST trigger diode
• With heatsink

Features:

• Voltage: AC 110V-230V
• Power: cont. 5000W below; Max. 10000W
• Voltage Regulation: AC 10V to 220V (Adjust begin 20V)

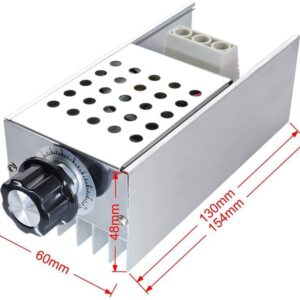

• Dimensions: 130 * 60 * 47mm

Application:

• Electric furnace, water heater, the lamps and lanterns that move light, small AC motor, solder iron temperature control and so on(Inductive or capacity load power should be reduced, the voltage regulator is equipped with two way high power thyristor, needn’t to add any component can be used , very convenient and practical.)

Note:

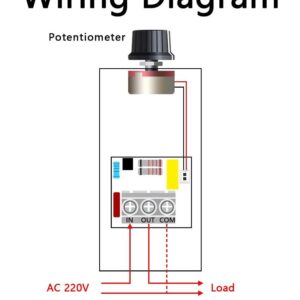

• The product needs to be connected to the load and adjust the potentiometer to detect the output voltage change.

Package includes:

• 1 x 10000W SCR Voltage Regulator
